10A
16A
25A
40A
50A
| 101 MODEL / HEATSINK | 10 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| DIN RAIL ONLY | 05 Amp |
| C-56 | 10 Amp |

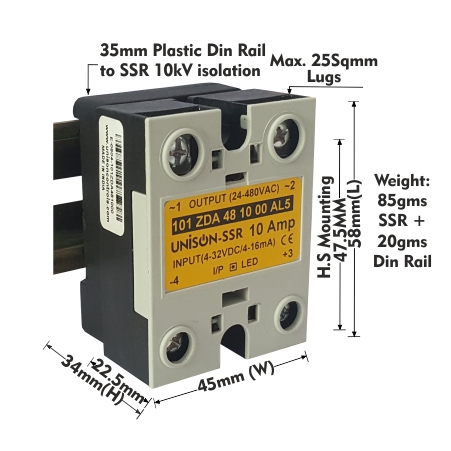

UNI 101 ZDA 48 10 00 AL5 + DIN RAIL
10 Amp DC to AC Solid State Relay, Zero cross over SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
Input : 4-32VDC/4-16mA
Input Green LED Indication
Output : 24-480(47-63 Hz), 10Amp
PIV : 800, I²T : 32A²S for 9.6mS
Zero Cross Over SSR design
Body insulation : 6kV for 1min
I/P. to O/P. insulation : 6kV for 1min
Long life cycle Up to 10¹¹ cycles
Inbuilt surge voltage protection of 2700Vrms
UNI 101 ZDA 48 10 00 AL5 + DIN RAIL
10 Amp DC to AC Solid State Relay, Zero cross over SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
| 101 MODEL / HEATSINK | 16 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| DIN RAIL ONLY | 08 Amp |
| C-56 | 12 Amp |
| G-68 | 16 Amp |

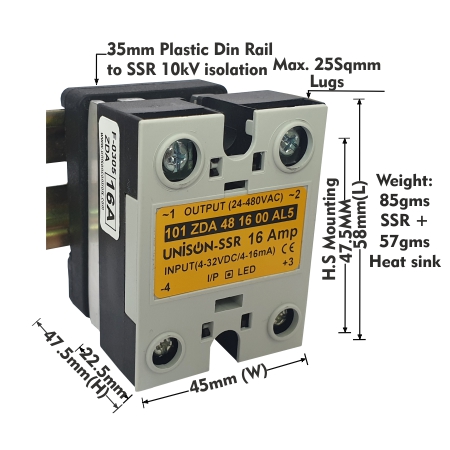

UNI 101 ZDA 48 16 00 AL5 + C-56 HEAT SINK + DIN RAIL
16 Amp DC to AC Solid State Relay, Zero cross over SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
Input : 4-32VDC/4-16mA
Input Green LED Indication
Output : 24-480(47-63 Hz), 16Amp
PIV : 800, I²T : 128A²S for 9.6mS
Zero Cross Over SSR design
Body insulation : 6kV for 1min
I/P. to O/P. insulation : 6kV for 1min
Long life cycle Up to 10¹¹ cycles
Inbuilt surge voltage protection of 2700Vrms
UNI 101 ZDA 48 16 00 AL5 + C-56 HEAT SINK + DIN RAIL
16 Amp DC to AC Solid State Relay, Zero cross over SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
| 101 MODEL / HEATSINK | 25 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| C-56 | 14 Amp |
| G-68 | 18 Amp |
| T-45 | 20 Amp |
| B-48 | 25 Amp |
| T-90 | 24 Amp + 24 Amp |

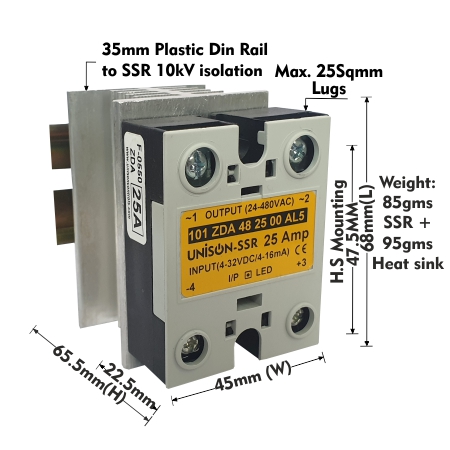

UNI 101 ZDA 48 25 00 AL5 + G-68 HEAT SINK + DIN RAIL
25 Amp DC to AC Solid State Relay, Zero cross over SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
Input : 4-32VDC/4-16mA
Input Green LED Indication
Output : 24-480(47-63 Hz), 25Amp
PIV : 800, I²T : 450A²S for 9.6mS
Zero Cross Over SSR design
Body insulation : 6kV for 1min
I/P. to O/P. insulation : 6kV for 1min
Long life cycle Up to 10¹¹ cycles
Inbuilt surge voltage protection of 2700Vrms
UNI 101 ZDA 48 25 00 AL5 + G-68 HEAT SINK + DIN RAIL
25 Amp DC to AC Solid State Relay, Zero cross over SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
| 101 MODEL / HEATSINK | 40 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| C-56 | 18 Amp |
| G-68 | 22 Amp |
| T-45 | 30 Amp |
| B-48 | 35 Amp |
| T-90 | 35 Amp + 35 Amp |

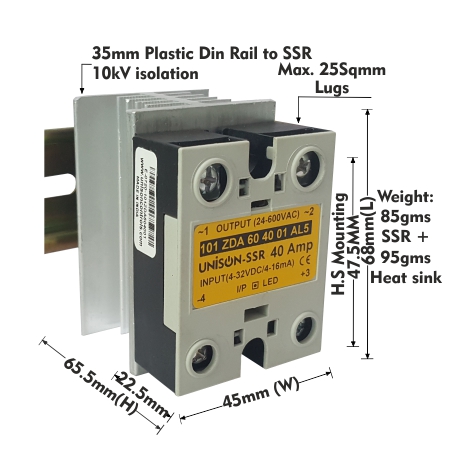

UNI 101 ZDA 60 40 01 AL5 + G-68 HEAT SINK + DIN RAIL
40 Amp DC to AC Solid State Relay, Zero cross over SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
Input : 4-32VDC/4-16mA, Input Green LED Indication
Output : 24-480(47-63 Hz), 40Amp
PIV : 1600, I²T : 1060A²S for 9.6mS
Zero Cross Over SSR design
Body insulation : 6kV for 1min
I/P. to O/P. insulation : 8kV for 1min
Long life cycle Up to 10¹¹ cycles
Inbuilt surge voltage protection of 2700Vrms
Short Circuit Protection by “B” Curve DP MCB
Short Circuit Current Rating : 10kA for <3mS
UNI 101 ZDA 60 40 01 AL5 + G-68 HEAT SINK + DIN RAIL
40 Amp DC to AC Solid State Relay, Zero cross over SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
| 101 MODEL / HEATSINK | 50 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| C-56 | 20 Amp |
| G-68 | 25 Amp |
| T-45 | 35 Amp |
| B-48 | 45 Amp |
| T-90 | 38 Amp + 38 Amp |

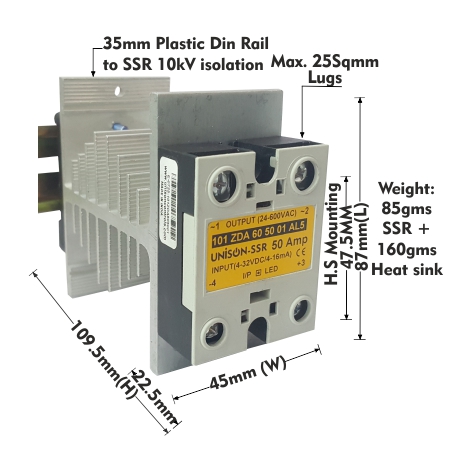

UNI 101 ZDA 60 50 01 AL5 + T-45 HEAT SINK + DIN RAIL
50 Amp DC to AC Solid State Relay, Zero cross over SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
Input : 4-32VDC/4-16mA, Input Green LED Indication
Output : 24-480(47-63 Hz), 50Amp
PIV : 1600, I²T : 3000A²S for 9.6mS
Zero Cross Over SSR design
Body insulation : 6kV for 1min
I/P. to O/P. insulation : 8kV for 1min
Long life cycle Up to 10¹¹ cycles
Inbuilt surge voltage protection of 2700Vrms
Short Circuit Protection by “B” Curve DP MCB
Short Circuit Current Rating : 10kA for <3mS
UNI 101 ZDA 60 50 01 AL5 + T-45 HEAT SINK + DIN RAIL
50 Amp DC to AC Solid State Relay, Zero cross over SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
