803 MODEL/HEATSINK
50 AMP SSR LOAD CURRENT @ 40°C
V-87 22 Amp
B-24 30 Amp
B-48 16 A x 2 = 32 Amp
B-72 40 Amp

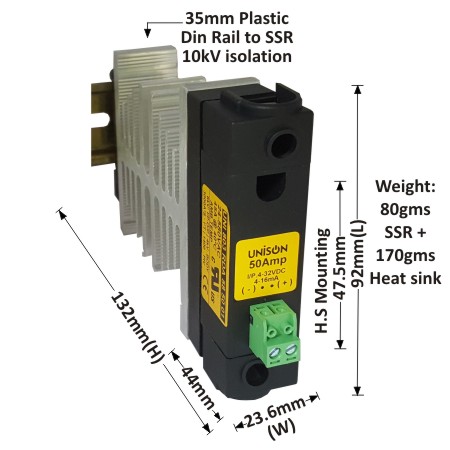

UNI 803 RDA 58 50 01 + B-24 HEAT SINK + DIN RAIL

50 Amp Slim DC to AC Random Solid State Relay, Instant ON switching SSR, 22.5 mm Slim Din rail SSR, Slim SSR, Back to Back SSR, 22.5 mm SSR, Short circuit protected SSR, Panel mounted SSR, 1PH SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

Slim width 23.6 mm design

Input : 4-32VDC/4-16mA, Input RED LED Indication

Output : 24-580VAC (47-63 Hz), 50 Amp

Instant Switching (Random SSR) design

PIV : 1400, I²T : 3000A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 8kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Short Circuit Protection by “B” Curve DP MCB

Resistive load Max 15 A SC protect by 16 A DP MCB

UNI 803 RDA 58 50 01 + B-24 HEAT SINK + DIN RAIL

50 Amp Slim DC to AC Random Solid State Relay, Instant ON switching SSR, 22.5 mm Slim Din rail SSR, Slim SSR, Back to Back SSR, 22.5 mm SSR, Short circuit protected SSR, Panel mounted SSR, 1PH SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

Product Sharing :
803 MODEL/HEATSINK
10 AMP SSR LOAD CURRENT @ 40°C
V-87 10Amp

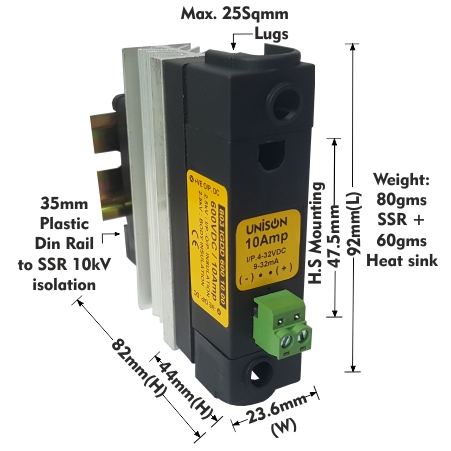

UNI 803 IGDD 600 10 00 + V-87 HEAT SINK + DIN RAIL

10 Amp Slim DC to DC Solid State Relay, IGBT SSR, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

Slim width 23.6 mm design

DC Output Switching SSR - IGBT

Input : 4-32 VDC, 9-32mA, RED LED Indication

Output : 5-600VDC, 10Amp

Body insulation : 2.5kV for 1min

I/P. to O/P. insulation : 2.5kV for 1min

ON State Voltage Drop : ≤1.8VDC

Turn ON time : 43 μS

Turn OFF time : 24 μS

No Leakage Current at output side

UNI 803 IGDD 600 10 00 + V-87 HEAT SINK + DIN RAIL

10 Amp Slim DC to DC Solid State Relay, IGBT SSR, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

Product Sharing :
803 MODEL/HEATSINK
50 AMP SSR LOAD CURRENT @ 40°C
V-87 20 Amp
B-24 40 Amp
B-48 50 Amp

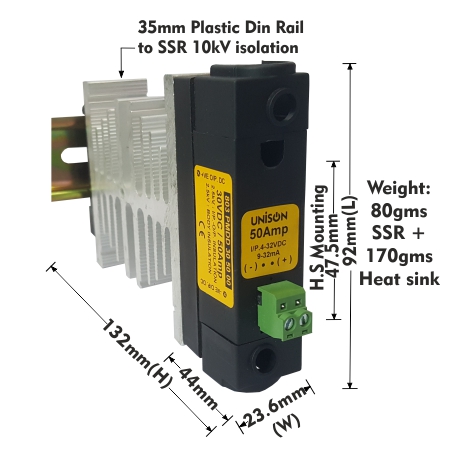

UNI 803 PMDD 30 50 00 + B-24 HEAT SINK + DIN RAIL

50 Amp Slim DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

Slim width 23.6 mm design

DC Output Switching SSR - POWER MOSFET

Input : 4-32 VDC, 9-32mA, RED LED Indication

Output : 5-30VDC, 50Amp

Body insulation : 2.5kV for 1min

I/P. to O/P. insulation : 2.5kV for 1min

ON State Voltage Drop : ≤0.4VDC

Turn ON time : 140 μS

Turn OFF time : 16 μS

No Leakage Current at output side

UNI 803 PMDD 30 50 00 + B-24 HEAT SINK + DIN RAIL

50 Amp Slim DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

Product Sharing :
803 MODEL/HEATSINK
30 AMP SSR LOAD CURRENT @ 40°C
V-87 20 Amp
B-24 30 Amp

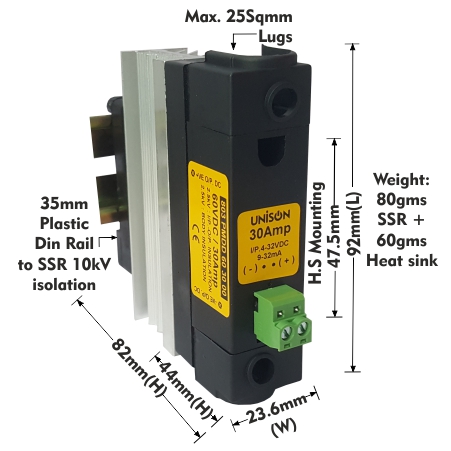

UNI 803 PMDD 60 30 00 + V-87 HEAT SINK + DIN RAIL

30 Amp Slim DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

Slim width 23.6 mm design

DC Output Switching SSR - POWER MOSFET

Input : 4-32 VDC, 9-32mA, RED LED Indication

Output : 5-60VDC, 30Amp

Body insulation : 2.5kV for 1min

I/P. to O/P. insulation : 2.5kV for 1min

ON State Voltage Drop : ≤0.7VDC

Turn ON time : 26 μS

Turn OFF time : 22 μS

No Leakage Current at output side

UNI 803 PMDD 60 30 00 + V-87 HEAT SINK + DIN RAIL

30 Amp Slim DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

Product Sharing :
803 MODEL/HEATSINK
50 AMP SSR LOAD CURRENT @ 40°C
V-87 22 AMP
T-22.5 28 Amp

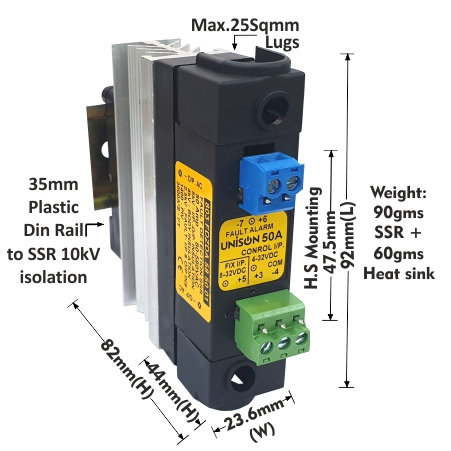

UNI 803 FDZDA 58 50 01 + V-87 HEAT SINK + DIN RAIL

50 Amp Fault Detection DC to AC Solid State Relay, Fault Detection SSR, Zero cross over SSR, 22.5 mm Slim design SSR, 22.5mm Din Rail SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Voltage based fault detection Solid State Relay

Protection/Detection against following faults:

(1) LOAD OPEN (2) LOAD SHORT (3) SSR SHORT

(4) Input Phase failure (MCB Tripped or OFF)

All fault is AUTO resettable after problem solved

Fault feedback-RED LED & Isolated to PLC or buzzer

Short Circuit Protection by "B" Curve DP MCB

Resistive load Max 15A SC protect by 16A DP MCB

Output : 80-580VAC (47-63 Hz), 50Amp

Appl: Strip/Cartridge/Sealing/Hot runner heater

UNI 803 FDZDA 58 50 01 + V-87 HEAT SINK + DIN RAIL

50 Amp Fault Detection DC to AC Solid State Relay, Fault Detection SSR, Zero cross over SSR, 22.5 mm Slim design SSR, 22.5mm Din Rail SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Product Sharing :
803 MODEL/HEATSINK
40 AMP SSR LOAD CURRENT @ 40°C
V-87 22 Amp
T-22.5 28 Amp

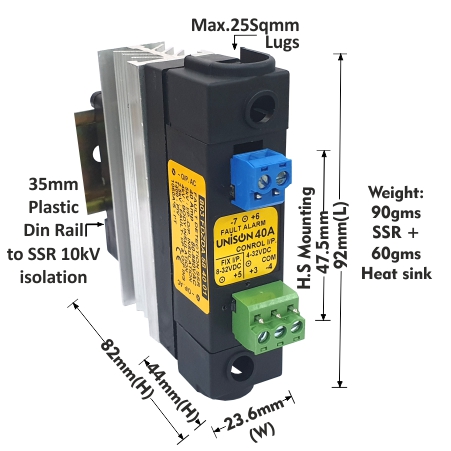

UNI 803 FDZDA 58 40 01 + V-87 HEAT SINK + DIN RAIL

40 Amp Fault Detection DC to AC Solid State Relay, Fault Detection SSR, Zero cross over SSR, 22.5 mm Slim design SSR, 22.5mm Din Rail SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Voltage based fault detection Solid State Relay

Protection/Detection against following faults:

(1) LOAD OPEN (2) LOAD SHORT (3) SSR SHORT

(4) Input Phase failure (MCB Tripped or OFF)

All fault is AUTO resettable after problem solved

Fault feedback-RED LED & Isolated to PLC or buzzer

Short Circuit Protection by "B" Curve DP MCB

Resistive load Max 9A SC protect by 10A DP MCB

Output : 80-580VAC (47-63 Hz), 40Amp

Appl: Strip/Cartridge/Sealing/Hot runner heater

UNI 803 FDZDA 58 40 01 + V-87 HEAT SINK + DIN RAIL

40 Amp Fault Detection DC to AC Solid State Relay, Fault Detection SSR, Zero cross over SSR, 22.5 mm Slim design SSR, 22.5mm Din Rail SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Product Sharing :
803 MODEL/HEATSINK
20 AMP SSR LOAD CURRENT @ 40°C
V-87 15 Amp
B-24 20 Amp

UNI 803 PMDD 200 20 00 + V-87 HEAT SINK + DIN RAIL

20 Amp Slim DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

Slim width 23.6 mm design

DC Output Switching SSR - POWER MOSFET

Input : 4-32 VDC, 9-32mA, RED LED Indication

Output : 5-200VDC, 20Amp

Body insulation : 2.5kV for 1min

I/P. to O/P. insulation : 2.5kV for 1min

ON State Voltage Drop : ≤0.9VDC

Turn ON time : 21 μS

Turn OFF time : 36 μS

No Leakage Current at output side

UNI 803 PMDD 200 20 00 + V-87 HEAT SINK + DIN RAIL

20 Amp Slim DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

Product Sharing :
803 MODEL/HEATSINK
15 AMP SSR LOAD CURRENT @ 40°C
V-87 15 Amp

UNI 803 PMDD 150 15 00 + V-87 HEAT SINK + DIN RAIL

15 Amp Slim DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

Slim width 23.6 mm design

DC Output Switching SSR - POWER MOSFET

Input : 4-32 VDC, 4-20mA, RED LED Indication

Output : 5-150VDC, 15Amp

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 4kV for 1min

ON State Voltage Drop : ≤0.3Vdc

Turn ON time : 21 μS

Turn OFF time : 36 μS

No Leakage Current at output side

UNI 803 PMDD 150 15 00 + V-87 HEAT SINK + DIN RAIL

15 Amp Slim DC to DC Solid State Relay, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

Product Sharing :
