901 MODEL / HEATSINK

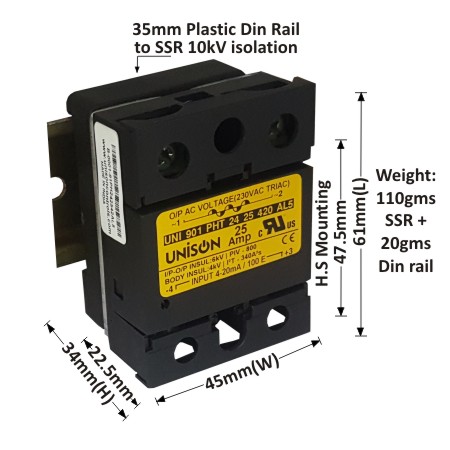

25 AMP SSR LOAD CURRENT @ 40°C
Without Heat sink 10 Amp
G-68 16 Amp

UNI 901 PHT 24 25 420 AL5 + DIN RAIL

25 Amp SSR Phase angle controller, SCR Power controller, Hockey puck 45 mm design SSR, Thyristor controller, Analog SSR, 4-20mA SSR, 0-10VDC SSR, Triac SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 22.5mm with 5mm Aluminium Plate

Input : 4 to 20mA. Separate order for 0-10 VDC

Input impedance <100E for Input 4-20 mA

Input impedance 560 Ω for Input 0-10VDC

Output : 230VAC or 440VAC (47-63 Hz), 25 Amp

Thyristor controller (Phase Angle control SSR)

PIV : 800Vpk, I²T : 340A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 6kV for 1min

Inbuilt surge voltage protection of 2700Vrms

UNI 901 PHT 24 25 420 AL5 + DIN RAIL

25 Amp SSR Phase angle controller, SCR Power controller, Hockey puck 45 mm design SSR, Thyristor controller, Analog SSR, 4-20mA SSR, 0-10VDC SSR, Triac SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK

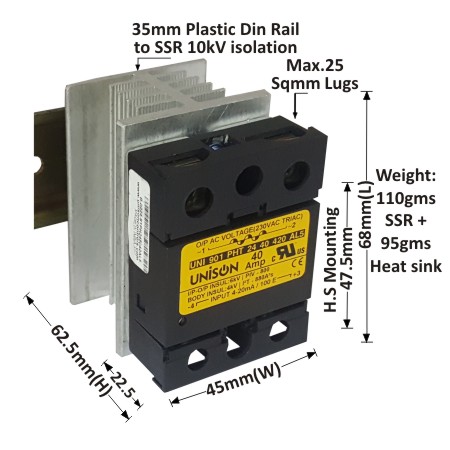

40 AMP SSR LOAD CURRENT @ 40°C
Without Heat sink 12 Amp
G-68 18 Amp

UNI 901 PHT 24 40 420 AL5 + G-68 HEAT SINK + DIN RAIL

40 Amp SSR Phase angle controller, SCR Power controller, Hockey puck 45 mm design SSR, Thyristor controller, Analog SSR, 4-20mA SSR, 0-10VDC SSR, Triac SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 22.5mm with 5mm Aluminium Plate

Input : 4 to 20mA. Separate order for 0-10 VDC

Input impedance <100E for Input 4-20 mA

Input impedance 560 Ω for Input 0-10VDC

Output : 230VAC/440VAC (47-63 Hz), 40 Amp

Thyristor controller (Phase Angle control SSR)

PIV : 800Vpk, I²T : 880A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 6kV for 1min

Inbuilt surge voltage protection of 2700Vrms

UNI 901 PHT 24 40 420 AL5 + G-68 HEAT SINK + DIN RAIL

40 Amp SSR Phase angle controller, SCR Power controller, Hockey puck 45 mm design SSR, Thyristor controller, Analog SSR, 4-20mA SSR, 0-10VDC SSR, Triac SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK

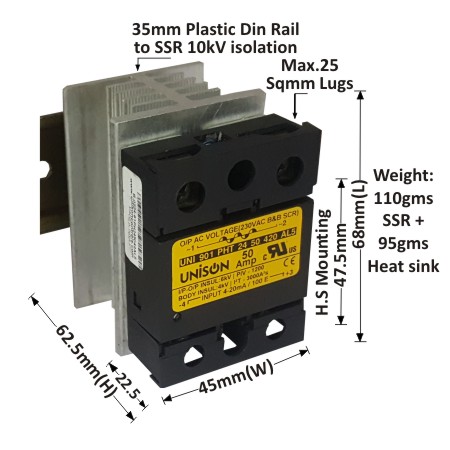

50 AMP SSR LOAD CURRENT @ 40°C
Without Heat sink 12 Amp
C-56 16 Amp
G-68 26 Amp
B-48 32 Amp

UNI 901 PHT 24 50 420 AL5 + G-68 HEAT SINK + DIN RAIL

50 Amp SSR Phase angle controller, SCR Power controller, Hockey puck 45 mm design SSR, Thyristor controller, Analog SSR, 4-20mA SSR, 0-10VDC SSR, Back to Back SSR, Short circuit protected SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 22.5mm with 5mm Aluminium Plate

Input : 4 to 20mA/<100E or 0-10 VDC/560 Ω

Output : 230VAC or 440VAC (47-63 Hz), 50 Amp

Thyristor controller (Phase Angle control SSR)

PIV : 1200Vpk, I²T : 3000A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 6kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Short Circuit Protection by “B” Curve DP MCB

Resistive load Max 15 A SC protect by 16 A DP MCB

UNI 901 PHT 24 50 420 AL5 + G-68 HEAT SINK + DIN RAIL

50 Amp SSR Phase angle controller, SCR Power controller, Hockey puck 45 mm design SSR, Thyristor controller, Analog SSR, 4-20mA SSR, 0-10VDC SSR, Back to Back SSR, Short circuit protected SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK

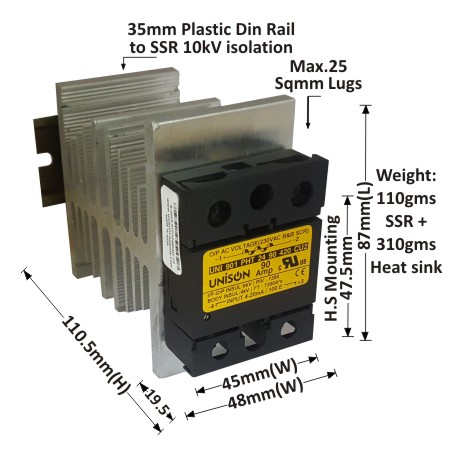

90 AMP SSR LOAD CURRENT @ 40°C
B-48 36 Amp
B-72 60 Amp
A-100 65 Amp
A-190 Heat Sink without Fan 36 A x 3 = 108 Amp
A-190 Heat Sink With Fan 40 A x 3 = 120 Amp

UNI 901 PHT 24 90 420 CU2 + B-48 HEAT SINK + DIN RAIL

90 Amp SSR Phase angle controller, SCR Power controller, Hockey puck 45 mm design SSR, Thyristor controller, Analog SSR, 4-20mA SSR, 0-10VDC SSR, Direct Bonded copper (DBC) Back to Back SSR, Short circuit protected SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 19.5mm with 2mm Copper Plate

Input : 4 to 20mA/<100E or 0-10 VDC/560 Ω

Output : 230VAC/440VAC (47-63 Hz), 90 Amp

Thyristor controller (Phase Angle control SSR)

PIV : 1200Vpk, I²T : 7200A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 6kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Short Circuit Protection by “B” Curve DP MCB

Resistive load Max 63 A SC protect by 63 A DP MCB

UNI 901 PHT 24 90 420 CU2 + B-48 HEAT SINK + DIN RAIL

90 Amp SSR Phase angle controller, SCR Power controller, Hockey puck 45 mm design SSR, Thyristor controller, Analog SSR, 4-20mA SSR, 0-10VDC SSR, Direct Bonded copper (DBC) Back to Back SSR, Short circuit protected SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK

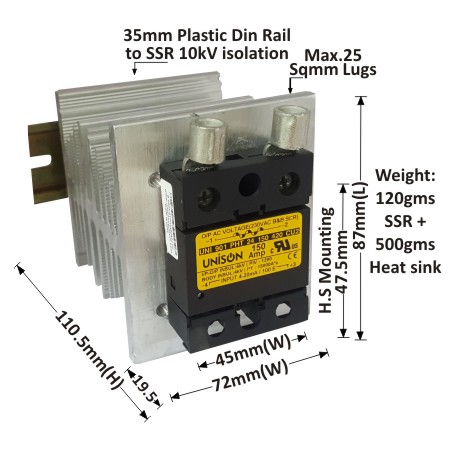

150 AMP SSR LOAD CURRENT @ 40°C
A-100 75 Amp
A-190 Heat Sink without Fan 40 A x 3 = 120 Amp
A-190 Heat Sink With Fan 45 A x 3 = 135 Amp

UNI 901 PHT 24 150 420 CU2 + B-72 HEAT SINK + DIN RAIL

150 Amp SSR Phase angle controller, SCR Power controller, Hockey puck 45 mm design SSR, Thyristor controller, Analog SSR, 4-20mA SSR, 0-10VDC SSR, Direct Bonded copper (DBC) Back to Back SSR, Short circuit protected SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 19.5mm with 2mm Copper Plate

Input : 4 to 20mA/<100E or 0-10 VDC/560 Ω

Output : 230VAC/440VAC (47-63 Hz), 150 Amp

Thyristor controller (Phase Angle control SSR)

PIV : 1200Vpk, I²T : 15000A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 6kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Short Circuit Protection by “B” Curve DP MCB

Resistive load Max 80 A SC protect by 80 A DP MCB

UNI 901 PHT 24 150 420 CU2 + B-72 HEAT SINK + DIN RAIL

150 Amp SSR Phase angle controller, SCR Power controller, Hockey puck 45 mm design SSR, Thyristor controller, Analog SSR, 4-20mA SSR, 0-10VDC SSR, Direct Bonded copper (DBC) Back to Back SSR, Short circuit protected SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK

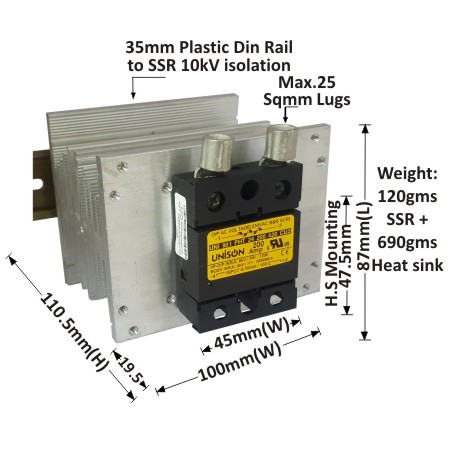

200 AMP SSR LOAD CURRENT @ 40°C
A-100 80 Amp
A-190 Heat Sink without Fan 44 A x 3 = 132 Amp
A-190 Heat Sink With Fan 52 A x 3 = 156 Amp

UNI 901 PHT 24 200 420 CU2 + A-100 HEAT SINK + DIN RAIL

200 Amp SSR Phase angle controller, SCR Power controller, Hockey puck 45 mm design SSR, Thyristor controller, Analog SSR, 4-20mA SSR, 0-10VDC SSR, Direct Bonded copper (DBC) Back to Back SSR, Short circuit protected SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 19.5mm with 2mm Copper Plate

Input : 4 to 20mA/<100E or 0-10 VDC/560 Ω

Output : 230VAC/440VAC (47-63 Hz), 200 Amp

Thyristor controller (Phase Angle control SSR)

PIV : 1200Vpk, I²T : 25000A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 6kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Short Circuit Protection by “B” Curve DP MCB

Resistive load Max 115A SC protect by 125A DP MCB

UNI 901 PHT 24 200 420 CU2 + A-100 HEAT SINK + DIN RAIL

200 Amp SSR Phase angle controller, SCR Power controller, Hockey puck 45 mm design SSR, Thyristor controller, Analog SSR, 4-20mA SSR, 0-10VDC SSR, Direct Bonded copper (DBC) Back to Back SSR, Short circuit protected SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
