IGBT DC TO DC SOLID STATE RELAY

Home  MODEL 901 - 45MM  IGBT DC TO DC SOLID STATE RELAY
Back
    Current name
  • MODEL 901 - 45MM
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY (UL APPROVED)
    • ZERO CROSS OVER AC TO AC SOLID STATE RELAY (UL APPROVED)
    • RANDOM DC TO AC SOLID STATE RELAY (UL APPROVED)
    • ANALOG PHASE ANGLE CONTROL SSR (UL APPROVED)
    • PHASE ANGLE CONTROLLER BY POT
    • MOSFET DC TO DC SOLID STATE RELAY
    • IGBT DC TO DC SOLID STATE RELAY
  • MODEL 901 THYRISTOR CONTROLLER
    • SCR POWER CONTROLLER (UL APPROVED)
    • BURST FIRE CONTROL SSR (UL APPROVED)
  • MODEL 901 TEMPERATURE CONTROLLER
    • MODBUS TEMP CONTROL HEAT ONLY SSR
    • MODBUS TEMP CONTROL HEAT & COOL SSR
  • MODEL 803 - 23.6MM
    • ZERO CROSS OVER SLIM DC TO AC SSR (UL APPROVED)
    • ZERO CROSS OVER SLIM AC TO AC SOLID STATE RELAY
    • SLIM RANDOM DC TO AC SSR (UL APPROVED)
    • SLIM ANALOG PHASE ANGLE CONTROL SSR
    • SLIM MOSFET DC TO DC SOLID STATE RELAY
    • SLIM IGBT DC TO DC SOLID STATE RELAY
    • FAULT DETECTION DC TO AC SSR
  • MODEL 101 - 45MM
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
    • RANDOM DC TO AC SOLID STATE RELAY
    • MOSFET DC TO DC SOLID STATE RELAY
  • MODEL 102 - 2 CHANNEL - 22.5 MM X 2 NOS.
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
  • MODEL 905 - 3PH
    • 3 PHASE DC TO AC SSR
    • 3 PHASE AC TO AC SSR
    • 3 PHASE UNIVERSAL TO AC SSR
    • 3 PH FW/REV DC TO AC OVER LOAD SSR
    • 3 PH FORWARD DC TO AC OVER LOAD SSR
  • PCB MOUNTED RELAY
    • MODEL 703
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 704
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 802
      • SLIM DC TO AC SOLID STATE RELAY
      • SLIM MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 806
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 807
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
  • MODEL 801/808
    • MODEL 801
      • 3 PHASE DC TO AC SSR
    • MODEL 808
      • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
  • SSR INTERFACE CARD
    • MODEL 909
      • SHORT CIRCUIT PROTECT DC TO DC SSR CARD
    • MODEL 806
      • DC TO AC INTERFACE RELAY CARD
      • DC TO DC INTERFACE RELAY CARD
    • MODEL 703
      • DC TO AC INTERFACE RELAY CARD
      • DC TO DC INTERFACE RELAY CARD
    • MODEL 905
      • SCANNER CARD
    • MODEL 710
      • LINEAR CURRENT TRANSFORMER (C.T.)
  • HEAT SINK SUITABLE
    • MODEL 901/801
    • MODEL 101/102
    • MODEL 803
    • MODEL 905
    • MODEL 807
    • MODEL 808
  • 10A
  • 20A
  • 10A
  • 20A
901 MODEL / HEATSINK
10 AMP SSR LOAD CURRENT @ 40°C
G-68 10 Amp

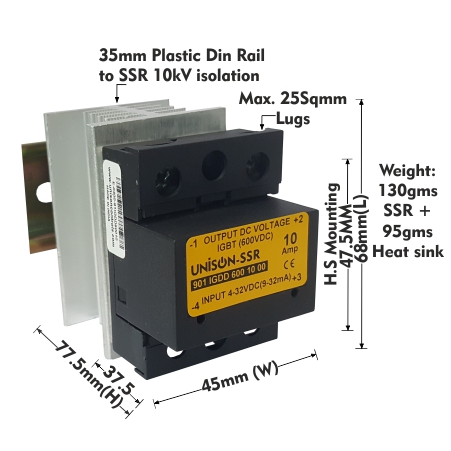

UNI 901 IGDD 600 10 00 + G-68 HEAT SINK + DIN RAIL

10 Amp Slim DC to DC Solid State Relay, IGBT SSR, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

DC Output Switching SSR - IGBT

Input : 4-32 VDC, 9-32mA

Input Green LED Indication

Output : 5-600VDC, 10Amp

Body insulation : 2.5kV for 1min

I/P. to O/P. insulation : 2.5kV for 1min

ON State Voltage Drop : ≤1.8Vdc

Turn ON time : 86 μS

Turn OFF time : 22 μS

No Leakage Current at output side

UNI 901 IGDD 600 10 00 + G-68 HEAT SINK + DIN RAIL

10 Amp Slim DC to DC Solid State Relay, IGBT SSR, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK
20 AMP SSR LOAD CURRENT @ 40°C
G-68 20 Amp

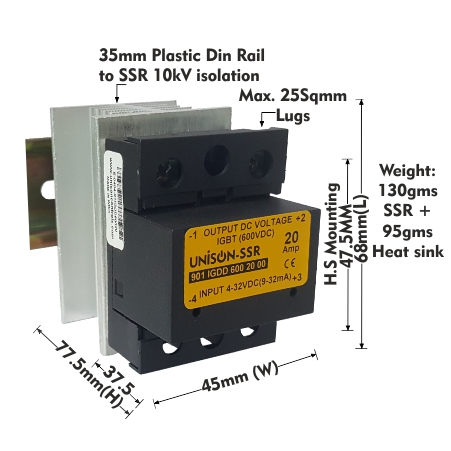

UNI 901 IGDD 600 20 00 + G-68 HEAT SINK + DIN RAIL

20 Amp Slim DC to DC Solid State Relay, IGBT SSR, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

DC Output Switching SSR - IGBT

Input : 4-32 VDC, 9-32mA

Input Green LED Indication

Output : 5-600VDC, 20Amp

Body insulation : 2.5kV for 1min

I/P. to O/P. insulation : 2.5kV for 1min

ON State Voltage Drop : ≤1.8Vdc

Turn ON time : 146 μS

Turn OFF time : 22 μS

No Leakage Current at output side

UNI 901 IGDD 600 20 00 + G-68 HEAT SINK + DIN RAIL

20 Amp Slim DC to DC Solid State Relay, IGBT SSR, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL/HEATSINK
10 AMP SSR LOAD CURRENT @ 40°C
G-68 10 Amp

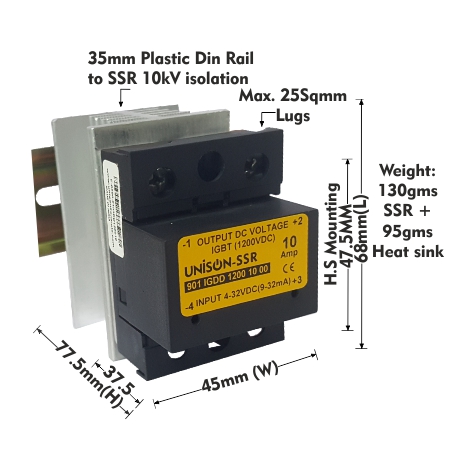

UNI 901 IGDD 1200 10 00 + G-68 HEAT SINK + DIN RAIL

10 Amp Slim DC to DC Solid State Relay, IGBT SSR, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

DC Output Switching SSR - IGBT

Input : 4-32 VDC, 9-32mA

Input Green LED Indication

Output : 5-1200VDC, 10Amp

Body insulation : 2.5kV for 1min

I/P. to O/P. insulation : 2.5kV for 1min

ON State Voltage Drop : ≤2Vdc

Turn ON time : 436 μS

Turn OFF time : 22 μS

No Leakage Current at output side

UNI 901 IGDD 1200 10 00 + G-68 HEAT SINK + DIN RAIL

10 Amp Slim DC to DC Solid State Relay, IGBT SSR, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK
20 AMP SSR LOAD CURRENT @ 40°C
G-68 10 Amp
B-48 20 Amp

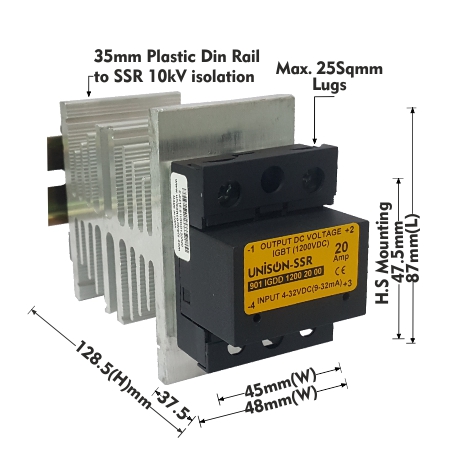

UNI 901 IGDD 1200 20 00 + B-48 HEAT SINK + DIN RAIL

20 Amp Slim DC to DC Solid State Relay, IGBT SSR, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

DC Output Switching SSR - IGBT

Input : 4-32 VDC, 9-32mA

Input Green LED Indication

Output : 5-1200VDC, 20Amp

Body insulation : 2.5kV for 1min

I/P. to O/P. insulation : 2.5kV for 1min

ON State Voltage Drop : ≤2Vdc

Turn ON time : 860 μS

Turn OFF time : 22 μS

No Leakage Current at output side

UNI 901 IGDD 1200 20 00 + B-48 HEAT SINK + DIN RAIL

20 Amp Slim DC to DC Solid State Relay, IGBT SSR, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Panel mounted SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR,SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
