PHASE ANGLE CONTROLLER BY POT

Home  MODEL 901 - 45MM  PHASE ANGLE CONTROLLER BY POT
Back
    MODEL 901 - 45MM
    PHASE ANGLE CONTROLLER BY POT
  • MODEL 901 - 45MM
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY (UL APPROVED)
    • ZERO CROSS OVER AC TO AC SOLID STATE RELAY (UL APPROVED)
    • RANDOM DC TO AC SOLID STATE RELAY (UL APPROVED)
    • ANALOG PHASE ANGLE CONTROL SSR (UL APPROVED)
    • PHASE ANGLE CONTROLLER BY POT
    • MOSFET DC TO DC SOLID STATE RELAY
    • IGBT DC TO DC SOLID STATE RELAY
  • MODEL 901 THYRISTOR CONTROLLER
    • SCR POWER CONTROLLER (UL APPROVED)
    • BURST FIRE CONTROL SSR (UL APPROVED)
  • MODEL 901 TEMPERATURE CONTROLLER
    • MODBUS TEMP CONTROL HEAT ONLY SSR
    • MODBUS TEMP CONTROL HEAT & COOL SSR
  • MODEL 803 - 23.6MM
    • ZERO CROSS OVER SLIM DC TO AC SSR (UL APPROVED)
    • ZERO CROSS OVER SLIM AC TO AC SOLID STATE RELAY
    • SLIM RANDOM DC TO AC SSR (UL APPROVED)
    • SLIM ANALOG PHASE ANGLE CONTROL SSR
    • SLIM MOSFET DC TO DC SOLID STATE RELAY
    • SLIM IGBT DC TO DC SOLID STATE RELAY
    • FAULT DETECTION DC TO AC SSR
  • MODEL 101 - 45MM
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
    • RANDOM DC TO AC SOLID STATE RELAY
    • MOSFET DC TO DC SOLID STATE RELAY
  • MODEL 102 - 2 CHANNEL - 22.5 MM X 2 NOS.
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
  • MODEL 905 - 3PH
    • 3 PHASE DC TO AC SSR
    • 3 PHASE AC TO AC SSR
    • 3 PHASE UNIVERSAL TO AC SSR
    • 3 PH FW/REV DC TO AC OVER LOAD SSR
    • 3 PH FORWARD DC TO AC OVER LOAD SSR
  • PCB MOUNTED RELAY
    • MODEL 703
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 704
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 802
      • SLIM DC TO AC SOLID STATE RELAY
      • SLIM MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 806
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 807
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
  • MODEL 801/808
    • MODEL 801
      • 3 PHASE DC TO AC SSR
    • MODEL 808
      • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
  • SSR INTERFACE CARD
    • MODEL 909
      • SHORT CIRCUIT PROTECT DC TO DC SSR CARD
    • MODEL 806
      • DC TO AC INTERFACE RELAY CARD
      • DC TO DC INTERFACE RELAY CARD
    • MODEL 703
      • DC TO AC INTERFACE RELAY CARD
      • DC TO DC INTERFACE RELAY CARD
    • MODEL 905
      • SCANNER CARD
    • MODEL 710
      • LINEAR CURRENT TRANSFORMER (C.T.)
  • HEAT SINK SUITABLE
    • MODEL 901/801
    • MODEL 101/102
    • MODEL 803
    • MODEL 905
    • MODEL 807
    • MODEL 808
  • 25A
  • 40A
  • 50A
  • 25A

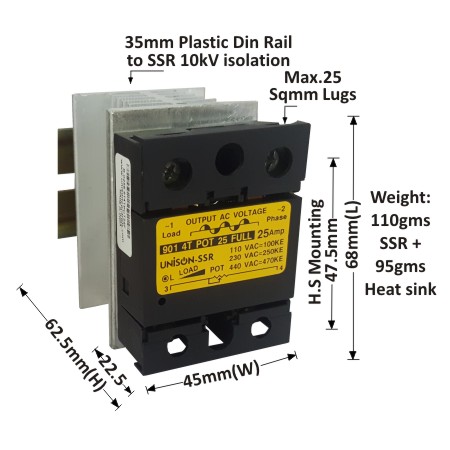

901 MODEL / HEATSINK
25 AMP SSR LOAD CURRENT @ 40°C
G-68 20 Amp

UNI 901 4T POT 25 FULL + G-68 HEAT SINK + DIN RAIL

25 Amp SSR Phase angle controller by pot, Variable resistance SSR, Variable Resistor to AC Phase Angle Control Solid State Relay, Pot SSR, Hockey puck 45 mm design SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 22.5mm with 5mm Aluminium Plate

Input : 100KE/250KE/470KE POT (SINGLE TURN)

Input Green LED indication

O/P. 0-110VAC/230VAC/440VAC, 25Amp

Phase Angle Control by POT

PIV : 800, I²T : 340A²S for 9.6mS

I/P. to O/P. insulation : 2.5kV for 1min

Long life cycle Up to 10¹¹ cycles

Inbuilt surge voltage protection of 2700Vrms

UNI 901 4T POT 25 FULL + G-68 HEAT SINK + DIN RAIL

25 Amp SSR Phase angle controller by pot, Variable resistance SSR, Variable Resistor to AC Phase Angle Control Solid State Relay, Pot SSR, Hockey puck 45 mm design SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK
40 AMP SSR LOAD CURRENT @ 40°C
G-68 25 Amp

UNI 901 4T POT 40 FULL + G-68 HEAT SINK + DIN RAIL

40 Amp SSR Phase angle controller by pot, Variable resistance SSR, Variable Resistor to AC Phase Angle Control Solid State Relay, Pot SSR, Hockey puck 45 mm design SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 22.5mm with 5mm Aluminium Plate

Input : 100KE/250KE/470KE POT (SINGLE TURN)

Input Green LED indication

O/P. 0-110VAC/230VAC/440VAC, 40Amp

Phase Angle Control by POT

PIV : 800, I²T : 880A²S for 9.6mS

I/P. to O/P. insulation : 2.5kV for 1min

Long life cycle Up to 10¹¹ cycles

Inbuilt surge voltage protection of 2700Vrms

UNI 901 4T POT 40 FULL + G-68 HEAT SINK + DIN RAIL

40 Amp SSR Phase angle controller by pot, Variable resistance SSR, Variable Resistor to AC Phase Angle Control Solid State Relay, Pot SSR, Hockey puck 45 mm design SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK

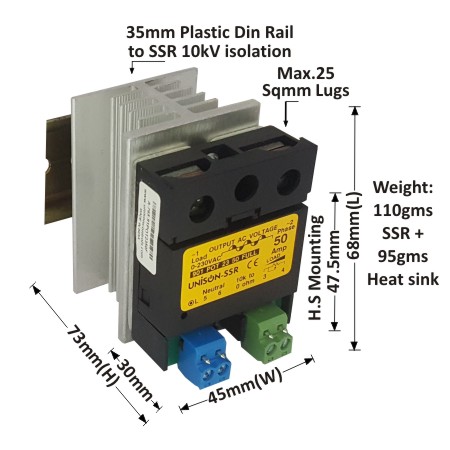

50 AMP SSR LOAD CURRENT @ 40°C
G-68 25 Amp
B-48 40 Amp

UNI 901 POT 23 50 FULL + G-68 HEAT SINK + DIN RAIL

50 Amp SSR Phase angle controller by pot, Variable resistance SSR, Variable Resistor to AC Phase Angle Control Solid State Relay, Pot SSR, Hockey puck 45 mm design SSR, Back to Back SSR, Short circuit protected SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 22.5mm with 5mm Aluminium Plate

Input : 10KE POT (SINGLE TURN), Green LED

Output : 0 to 230 VAC (47-63 Hz), 50 Amp

Phase Angle Control by POT with neutral

PIV : 1200, I²T : 3000A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 4kV for 1min

Short Circuit Protection by “B” Curve DP MCB

Resistive load Max 15 A SC protect by 16 A DP MCB

Short Circuit Current Rating : 10kA for <3mS

UNI 901 POT 23 50 FULL + G-68 HEAT SINK + DIN RAIL

50 Amp SSR Phase angle controller by pot, Variable resistance SSR, Variable Resistor to AC Phase Angle Control Solid State Relay, Pot SSR, Hockey puck 45 mm design SSR, Back to Back SSR, Short circuit protected SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK

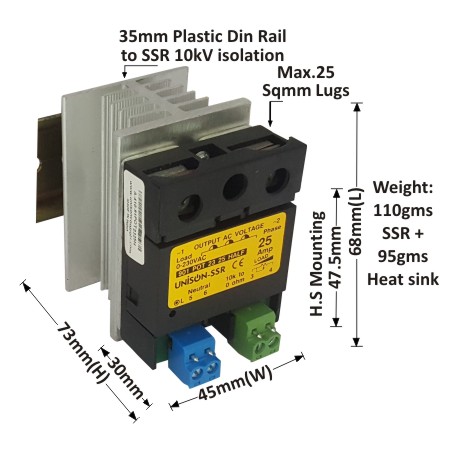

25 AMP SSR LOAD CURRENT @ 40°C
G-68 5 Amp

UNI 901 POT 23 25 HALF + G-68 HEAT SINK + DIN RAIL

25 Amp SSR Phase angle controller by pot, Variable resistance SSR, Variable Resistor to AC Phase Angle Control Solid State Relay, Vibration Controller by Pot SSR, Pot SSR, Hockey puck 45 mm design SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 22.5mm with 5mm Aluminium Plate

Input : 10KE POT (SINGLE TURN)

Input Green LED Indication

Output : 0 to 230 VAC (47-63 Hz), 25 Amp

Vibration Control by POT with Neutral

PIV : 800, I²T : 340A²S for 9.6mS

Body insulation : 4kV for 1min

I/P. to O/P. insulation : 4kV for 1min

Long life cycle Up to 10¹¹ cycles

Inbuilt surge voltage protection of 2700Vrms

UNI 901 POT 23 25 HALF + G-68 HEAT SINK + DIN RAIL

25 Amp SSR Phase angle controller by pot, Variable resistance SSR, Variable Resistor to AC Phase Angle Control Solid State Relay, Vibration Controller by Pot SSR, Pot SSR, Hockey puck 45 mm design SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
