901 MODEL / HEATSINK
25 AMP SSR LOAD CURRENT @ 40°C
Without Heat sink 10 Amp
C-56 12 Amp
G-68 16 Amp

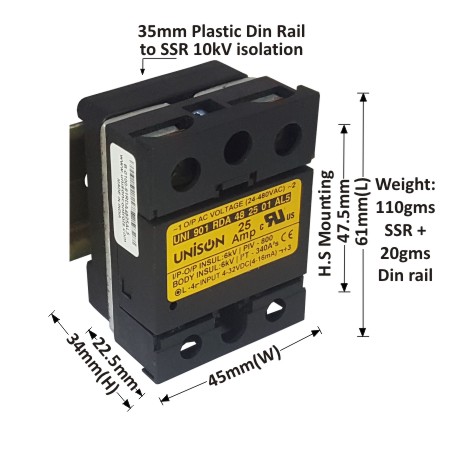

UNI 901 RDA 48 25 01 AL5 + DIN RAIL

25 Amp DC to AC Random Solid State Relay, Instant ON switching SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Transformer ON/OFF SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 22.5mm with 5mm Aluminium Plate

Input : 4-32VDC / 4-16mA

Input Green LED Indication

Output : 24-480VAC (47-63 Hz), 25 Amp

Instant Switching (Random SSR) design

PIV : 800, I²T : 340A²S for 9.6mS

Body insulation : 6kV for 1min

I/P. to O/P. insulation : 6kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Long life cycle Upto 10¹¹ cycles

UNI 901 RDA 48 25 01 AL5 + DIN RAIL

25 Amp DC to AC Random Solid State Relay, Instant ON switching SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Transformer ON/OFF SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK
40 AMP SSR LOAD CURRENT @ 40°C
Without Heat sink 12 Amp
C-56 14 Amp
G-68 18 Amp

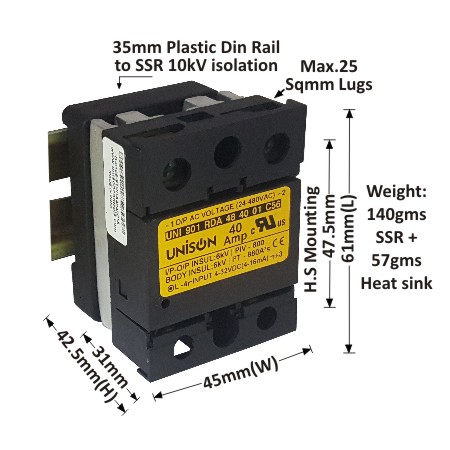

UNI 901 RDA 48 40 01 C56 + DIN RAIL

40 Amp DC to AC Random Solid State Relay, Instant ON switching SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Transformer ON/OFF SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 22.5mm with 5mm Aluminium Plate

Input : 4-32VDC / 4-16mA

Input Green LED Indication

Output : 24-480VAC (47-63 Hz), 40 Amp

Instant Switching (Random SSR) design

PIV : 800, I²T : 880A²S for 9.6mS

Body insulation : 6kV for 1min

I/P. to O/P. insulation : 6kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Long life cycle Up to 10¹¹ cycles

UNI 901 RDA 48 40 01 C56 + DIN RAIL

40 Amp DC to AC Random Solid State Relay, Instant ON switching SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Transformer ON/OFF SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK
50 AMP SSR LOAD CURRENT @ 40°C
Without Heat sink 12 Amp
C-56 16 Amp
G-68 26 Amp
B-48 32 Amp

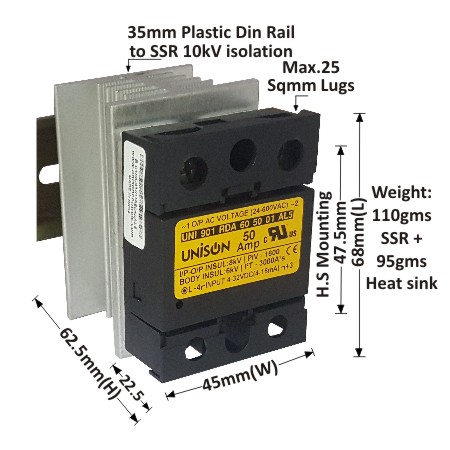

UNI 901 RDA 60 50 01 AL5 + G-68 HEAT SINK + DIN RAIL

50 Amp DC to AC Random Solid State Relay, Instant ON switching SSR, Hockey puck 45 mm design SSR, Back to Back SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Transformer ON/OFF SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 22.5mm with 5mm Aluminium Plate

Input : 4-32VDC / 4-16mA, Green LED indication

O/P : 24-600VAC (47-63 Hz), 50 Amp

Instant Switching (Random SSR) design

PIV : 1600, I²T : 3000A²S for 9.6mS

Body insulation : 6kV for 1min

I/P. to O/P. insulation : 8kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Short Circuit Protection by “B” Curve DP MCB

Resistive load Max 15 A SC protect by 16 A DP MCB

UNI 901 RDA 60 50 01 AL5 + G-68 HEAT SINK + DIN RAIL

50 Amp DC to AC Random Solid State Relay, Instant ON switching SSR, Hockey puck 45 mm design SSR, Back to Back SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Transformer ON/OFF SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK
90 AMP SSR LOAD CURRENT @ 40°C
B-48 36 Amp
B-72 60 Amp
A-100 65 Amp
A-190 Heat Sink without Fan 36 A x 3 = 108 Amp
A-190 Heat Sink with Fan 40 A x 3 = 120 Amp

UNI 901 RDA 60 90 01 CU2 + B-48 HEAT SINK + DIN RAIL

90 Amp DC to AC Random Solid State Relay, Instant ON switching SSR, Hockey puck 45 mm design SSR, Direct Bonded copper (DBC) Back to Back SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Transformer ON/OFF SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 19.5mm with 2mm Copper Plate

Input : 4-32VDC / 4-16mA, Green LED indication

Output : 24-600VAC (47-63 Hz), 90 Amp

Instant Switching (Random SSR) design

PIV : 1600, I²T : 7200A²S for 9.6mS

Body insulation : 6kV for 1min

I/P. to O/P. insulation : 8kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Short Circuit Protection by “B” Curve DP MCB

Resistive load Max 63 A SC protect by 63 A DP MCB

UNI 901 RDA 60 90 01 CU2 + B-48 HEAT SINK + DIN RAIL

90 Amp DC to AC Random Solid State Relay, Instant ON switching SSR, Hockey puck 45 mm design SSR, Direct Bonded copper (DBC) Back to Back SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Transformer ON/OFF SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK
150 AMP SSR LOAD CURRENT @ 40°C
A-100 75 Amp
A-190 Heat Sink without Fan 40 A x 3 = 120 Amp
A-190 Heat Sink with Fan 45 A x 3 = 135 Amp

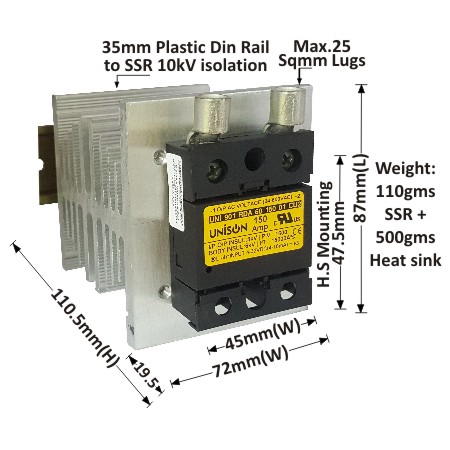

UNI 901 RDA 60 150 01 CU2 + B-72 HEAT SINK + DIN RAIL

150 Amp DC to AC Random Solid State Relay, Instant ON switching SSR, Hockey puck 45 mm design SSR, Direct Bonded copper (DBC) Back to Back SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Transformer ON/OFF SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 19.5mm with 2mm Copper Plate

Input : 4-32VDC / 4-16mA, Green LED indication

Output : 24-600VAC (47-63 Hz), 150 Amp

Instant Switching (Random SSR) design

PIV : 1600, I²T : 15000A²S for 9.6mS

Body insulation : 6kV for 1min

I/P. to O/P. insulation : 8kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Short Circuit Protection by “B” Curve DP MCB

Resistive load Max 80 A SC protect by 80 A DP MCB

UNI 901 RDA 60 150 01 CU2 + B-72 HEAT SINK + DIN RAIL

150 Amp DC to AC Random Solid State Relay, Instant ON switching SSR, Hockey puck 45 mm design SSR, Direct Bonded copper (DBC) Back to Back SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Transformer ON/OFF SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
901 MODEL / HEATSINK
200 AMP SSR LOAD CURRENT @ 40°C
A-100 80 Amp
A-190 Heat Sink without Fan 44 A x 3 = 132 Amp
A-190 Heat Sink with Fan 52 A x 3 = 156 Amp

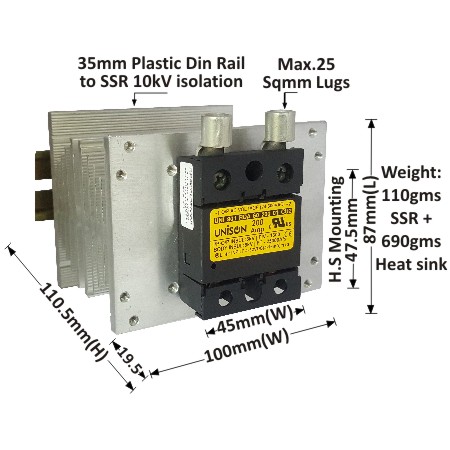

UNI 901 RDA 60 200 01 CU2 + A-100 HS + DIN RAIL

200 Amp DC to AC Random Solid State Relay, Instant ON switching SSR, Hockey puck 45 mm design SSR, Direct Bonded copper (DBC) Back to Back SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Transformer ON/OFF SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Lowest thickness 19.5mm with 2mm Copper Plate

Input : 4-32VDC / 4-16mA, Green LED indication

Output : 24-600VAC (47-63 Hz), 200 Amp

Instant Switching (Random SSR) design

PIV : 1600, I²T : 25000A²S for 9.6mS

Body insulation : 6kV for 1min

I/P. to O/P. insulation : 8kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Short Circuit Protection by “B” Curve DP MCB

Resistive load Max 115A SC protect by 125A DP MCB

UNI 901 RDA 60 200 01 CU2 + A-100 HS + DIN RAIL

200 Amp DC to AC Random Solid State Relay, Instant ON switching SSR, Hockey puck 45 mm design SSR, Direct Bonded copper (DBC) Back to Back SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Transformer ON/OFF SSR, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
