MODBUS TEMP CONTROL HEAT ONLY SSR

Home  MODEL 901 TEMPERATURE CONTROLLER  MODBUS TEMP CONTROL HEAT ONLY SSR
Back
    Current name
  • MODEL 901 - 45MM
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY (UL APPROVED)
    • ZERO CROSS OVER AC TO AC SOLID STATE RELAY (UL APPROVED)
    • RANDOM DC TO AC SOLID STATE RELAY (UL APPROVED)
    • ANALOG PHASE ANGLE CONTROL SSR (UL APPROVED)
    • PHASE ANGLE CONTROLLER BY POT
    • MOSFET DC TO DC SOLID STATE RELAY
    • IGBT DC TO DC SOLID STATE RELAY
  • MODEL 901 THYRISTOR CONTROLLER
    • SCR POWER CONTROLLER (UL APPROVED)
    • BURST FIRE CONTROL SSR (UL APPROVED)
  • MODEL 901 TEMPERATURE CONTROLLER
    • MODBUS TEMP CONTROL HEAT ONLY SSR
    • MODBUS TEMP CONTROL HEAT & COOL SSR
  • MODEL 803 - 23.6MM
    • ZERO CROSS OVER SLIM DC TO AC SSR (UL APPROVED)
    • ZERO CROSS OVER SLIM AC TO AC SOLID STATE RELAY
    • SLIM RANDOM DC TO AC SSR (UL APPROVED)
    • SLIM ANALOG PHASE ANGLE CONTROL SSR
    • SLIM MOSFET DC TO DC SOLID STATE RELAY
    • SLIM IGBT DC TO DC SOLID STATE RELAY
    • FAULT DETECTION DC TO AC SSR
  • MODEL 101 - 45MM
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
    • RANDOM DC TO AC SOLID STATE RELAY
    • MOSFET DC TO DC SOLID STATE RELAY
  • MODEL 102 - 2 CHANNEL - 22.5 MM X 2 NOS.
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
  • MODEL 905 - 3PH
    • 3 PHASE DC TO AC SSR
    • 3 PHASE AC TO AC SSR
    • 3 PHASE UNIVERSAL TO AC SSR
    • 3 PH FW/REV DC TO AC OVER LOAD SSR
    • 3 PH FORWARD DC TO AC OVER LOAD SSR
  • PCB MOUNTED RELAY
    • MODEL 703
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 704
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 802
      • SLIM DC TO AC SOLID STATE RELAY
      • SLIM MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 806
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 807
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
  • MODEL 801/808
    • MODEL 801
      • 3 PHASE DC TO AC SSR
    • MODEL 808
      • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
  • SSR INTERFACE CARD
    • MODEL 909
      • SHORT CIRCUIT PROTECT DC TO DC SSR CARD
    • MODEL 806
      • DC TO AC INTERFACE RELAY CARD
      • DC TO DC INTERFACE RELAY CARD
    • MODEL 703
      • DC TO AC INTERFACE RELAY CARD
      • DC TO DC INTERFACE RELAY CARD
    • MODEL 905
      • SCANNER CARD
    • MODEL 710
      • LINEAR CURRENT TRANSFORMER (C.T.)
  • HEAT SINK SUITABLE
    • MODEL 901/801
    • MODEL 101/102
    • MODEL 803
    • MODEL 905
    • MODEL 807
    • MODEL 808
  • 90A
  • 200A

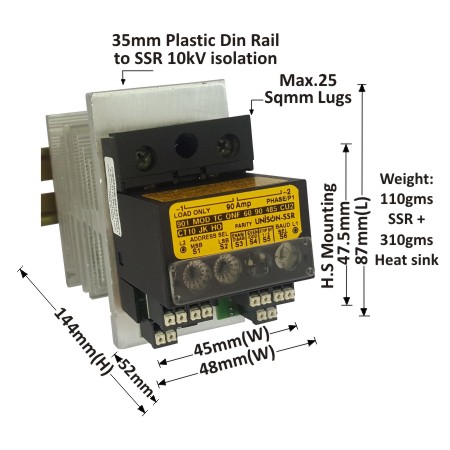

901 MODEL / HEATSINK
90 AMP SSR LOAD CURRENT @ 40°C
B-48 36 Amp
B-72 60 Amp
A-100 65 Amp
A-190 Heat Sink without Fan 36 A x 3 = 108 Amp
A-190 Heat Sink with Fan 40 A x 3 = 120 Amp

UNI 901 MOD TC ONF 60 90 485 CU2 CT60 JK HO

90 Amp Communication SSR, Temperature controller, SSR with inbuilt Temperature controller, Temperature control SSR, RS 485 MODBUS SSR, Inbuilt PID SSR, Temperature display SSR, SSR communication with HMI PLC, Smart SSR, Module SSR, Solid State Relays, SSR, SSRs and Heatsink

Temp Controller with Normal PID+Fuzzy Control+

2 Degree of freedom+Adaptive Control (Heat Only)

Interact to HMI or PLC on Modbus RTU 485 protocol

Select J or K TC (RTD optional), CJC in the SSR

247 nos. HEX address selection on SSR by 2 switch

Baud rate: 9600/19200/57600/115200 bps by switch

Parity On/Off, Even/Odd, Stop bit 1/2 by switch

Ext. CT for Current & Load failure indication

O/p 24-600VAC/47-63Hz/ 90 Amp/ Zero cross over

All input isolated, RS485 as per IEC 61000 STD.

UNI 901 MOD TC ONF 60 90 485 CU2 CT60 JK HO

90 Amp Communication SSR, Temperature controller, SSR with inbuilt Temperature controller, Temperature control SSR, RS 485 MODBUS SSR, Inbuilt PID SSR, Temperature display SSR, SSR communication with HMI PLC, Smart SSR, Module SSR, Solid State Relays, SSR, SSRs and Heatsink

CAD DRAWING DATASHEET
Product Sharing :

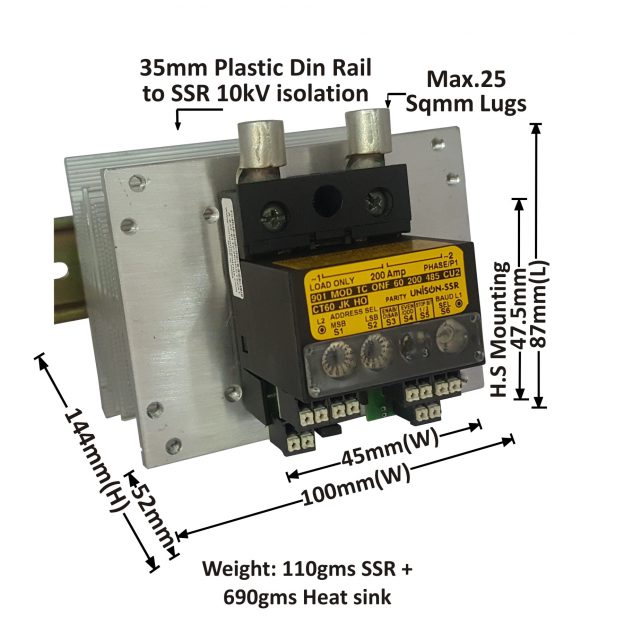

901 MODEL / HEATSINK
200 AMP SSR LOAD CURRENT @ 40°C
A-100 80 Amp
A-190 Heat Sink without Fan 44 A x 3 = 132 Amp
A-190 Heat Sink with Fan 52 A x 3 = 156 Amp

UNI 901 MOD TC ONF 60 200 485 CU2 CT60 JK HO

200 Amp Communication SSR, Temperature controller, SSR with inbuilt Temperature controller, Temperature control SSR, RS 485 MODBUS SSR, Inbuilt PID SSR, Temperature display SSR, SSR communication with HMI PLC, Smart SSR, Module SSR, Solid State Relays, SSR, SSRs and Heatsink

Temp Controller with Normal PID+Fuzzy Control+

2 Degree of freedom+Adaptive Control (Heat Only)

Interact to HMI or PLC on Modbus RTU 485 protocol

Select J or K TC (RTD optional), CJC in the SSR

247 nos. HEX address selection on SSR by 2 switch

Baud rate: 9600/19200/57600/115200 bps by switch

Parity On/Off, Even/Odd, Stop bit 1/2 by switch

Ext. CT for Current & Load failure indication

O/p 24-600VAC/47-63Hz/ 200 Amp/ Zero cross over

All input isolated, RS485 as per IEC 61000 STD.

UNI 901 MOD TC ONF 60 200 485 CU2 CT60 JK HO

200 Amp Communication SSR, Temperature controller, SSR with inbuilt Temperature controller, Temperature control SSR, RS 485 MODBUS SSR, Inbuilt PID SSR, Temperature display SSR, SSR communication with HMI PLC, Smart SSR, Module SSR, Solid State Relays, SSR, SSRs and Heatsink

CAD DRAWING DATASHEET
Product Sharing :
