- MODEL 905 - 3PH
- PCB MOUNTED RELAY
- MODEL 801/808
- SSR INTERFACE CARD
- HEAT SINK SUITABLE
25A
40A
90A
05A
10A
15A
25A
05A
| 905 MODEL / HEATSINK | 25 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| E-75 | Upto 2 HP Motor |
| E-75 | 7 AmpX3=21 Amp |

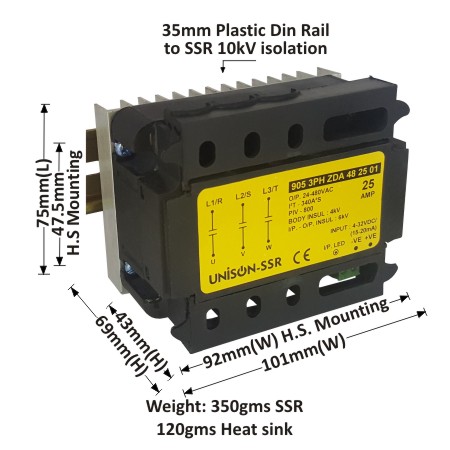

UNI 905 3PH ZDA 48 25 01 + E-75 HEAT SINK + DIN RAIL
25 Amp 3 Phase DC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
Input : 4-32VDC, 15-20mA, Plug in Type
Input LED Indication : Green
3 Phase Output : 24-480VAC (47-63 Hz), 25 Amp
PIV : 800Vpk,I²T : 340A²S for 9.6mS
Body isolation : 4kV for 1min
I/P. to O/P. isolation : 6kV for 1min
Inbuilt surge voltage protection of 2700Vrms
Zero Cross Over SSR
IP 20 protection Flaps Cover
Inbuilt Snubber
UNI 905 3PH ZDA 48 25 01 + E-75 HEAT SINK + DIN RAIL
25 Amp 3 Phase DC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
| 905 MODEL / HEATSINK | 40 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| E-75 | Upto 3 HP Motor |
| E-75 | 7 AmpX3=21 Amp |

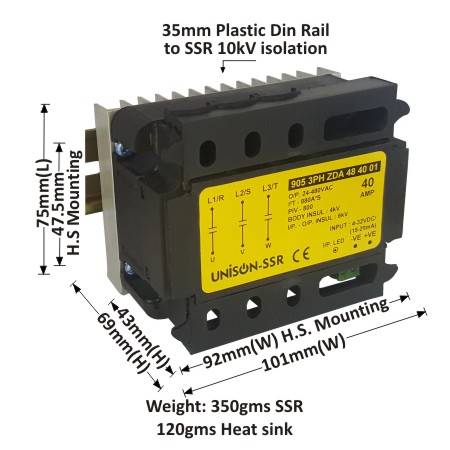

UNI 905 3PH ZDA 48 40 01 + E-75 HEAT SINK + DIN RAIL
40 Amp 3 Phase DC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
Input : 4-32VDC, 15-20mA, Plug in Type
Input LED Indication : Green
3 Phase Output : 24-480VAC (47-63 Hz), 40 Amp
PIV : 800Vpk,I²T : 880A²S for 9.6mS
Body isolation : 4kV for 1min
I/P. to O/P. isolation : 6kV for 1min
Inbuilt surge voltage protection of 2700Vrms
Zero Cross Over SSR
IP 20 protection Flaps Cover
Inbuilt Snubber
UNI 905 3PH ZDA 48 40 01 + E-75 HEAT SINK + DIN RAIL
40 Amp 3 Phase DC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
| 905 MODEL / HEATSINK | 90 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| E-75 | Upto 3 HP Motor |
| A-100 | Upto 7.5 HP Motor |
| A-100 | 23 Amp X 3 =69 Amp |
UNI 905 3PH ZUA 48 90 02 + A-100 HEAT SINK + DIN RAIL
50 Amp 3 Phase Universal to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
Input : 12-270VAC/DC, 5-10mA, Green LED
Input AC Signal frequency : 15-65 Hz
3 Phase Output : 24-480VAC (47-63 Hz), 90 Amp
PIV : 1200Vpk, I²T : 720A²S for 9.6mS
Body isolation : 4kV for 1min
I/P. to O/P. isolation : 6kV for 1min
Short Circuit Protection by “B” Curve DP MCB
Resistive load Max 32 A SC protect by 40 A 3P MCB
Short Circuit Current Rating : 10kA for <3mS
Inbuilt surge voltage protection of 2700Vrms
UNI 905 3PH ZUA 48 90 02 + A-100 HEAT SINK + DIN RAIL
50 Amp 3 Phase Universal to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
| 905 MODEL / HEATSINK | 05 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| E-75 | Upto 3 HP Motor |
UNI 905 3FR OLSPZDA 48 05 01 + E-75 HEAT SINK + DIN RAIL
3 Phase Forward Reverse DC to AC Solid State Relay, Forward Reverse SSR, Forward Reverse Semiconductor Motor Starter with Overload / Single Phase Protection Current and Voltage Detection, 3 PH Forward Reverse SSR, Motor controller, DOL starter, SSR with inbuilt OLR, Overload relays, Motor Relays, Semiconductor Motor controller, SSR, SSRs and Heatsink
100% Semiconductor motor 3 Phase Zero Cross SSR
Voltage and Current detection inside SSR
Forward & Reverse - 2 Direction Motor Control
Over load current protection and setting by POT
Single Phasing/Unbalance/Short Circuit protection
AUTO / Manual RESET via selection switch
Fault feedback - RED LED & Mech relay NO/NC
Upto 5 Amp load current (Motor rating upto 3 HP)
Output : 24-480 VAC (47-63 Hz), 05Amp
PIV : 1200Vpk, I²T : 880A²S for 9.6mS
UNI 905 3FR OLSPZDA 48 05 01 + E-75 HEAT SINK + DIN RAIL
3 Phase Forward Reverse DC to AC Solid State Relay, Forward Reverse SSR, Forward Reverse Semiconductor Motor Starter with Overload / Single Phase Protection Current and Voltage Detection, 3 PH Forward Reverse SSR, Motor controller, DOL starter, SSR with inbuilt OLR, Overload relays, Motor Relays, Semiconductor Motor controller, SSR, SSRs and Heatsink
| 905 MODEL / HEATSINK | 10 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| E-75 | Upto 3 HP Motor |
| A-100 | Upto 5 HP Motor |
UNI 905 3FR OLSPZDA 48 10 01 + E-75 HEAT SINK + DIN RAIL
3 Phase Forward Reverse DC to AC Solid State Relay, Forward Reverse SSR, Forward Reverse Semiconductor Motor Starter with Overload / Single Phase Protection Current and Voltage Detection, 3 PH Forward Reverse SSR, Motor controller, DOL starter, SSR with inbuilt OLR, Overload relays, Motor Relays, Semiconductor Motor controller, SSR, SSRs and Heatsink
100% Semiconductor motor 3 Phase Zero Cross SSR
Voltage and Current detection inside SSR
Forward & Reverse - 2 Direction Motor Control
Over load current protection and setting by POT
Single Phasing/Unbalance/Short Circuit protection
AUTO / Manual RESET via selection switch
Fault feedback - RED LED & Mech relay NO/NC
Upto 10 Amp load current (Motor rating upto 3 HP)
Output : 24-480 VAC (47-63 Hz), 10Amp
PIV : 1200Vpk, I²T : 3000A²S for 9.6mS
UNI 905 3FR OLSPZDA 48 10 01 + E-75 HEAT SINK + DIN RAIL
3 Phase Forward Reverse DC to AC Solid State Relay, Forward Reverse SSR, Forward Reverse Semiconductor Motor Starter with Overload / Single Phase Protection Current and Voltage Detection, 3 PH Forward Reverse SSR, Motor controller, DOL starter, SSR with inbuilt OLR, Overload relays, Motor Relays, Semiconductor Motor controller, SSR, SSRs and Heatsink
| 905 MODEL / HEATSINK | 15 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| E-75 | Upto 3 HP Motor |
| A-100 | Upto 7.5 HP Motor |
UNI 905 3FR OLSPZDA 48 15 01 + A100 HEAT SINK + DIN RAIL
3 Phase Forward Reverse DC to AC Solid State Relay, Forward Reverse SSR, Forward Reverse Semiconductor Motor Starter with Overload / Single Phase Protection Current and Voltage Detection, 3 PH Forward Reverse SSR, Motor controller, DOL starter, SSR with inbuilt OLR, Overload relays, Motor Relays, Semiconductor Motor controller, SSR, SSRs and Heatsink
100% Semiconductor motor 3 Phase Zero Cross SSR
Voltage and Current detection inside SSR
Forward & Reverse - 2 Direction Motor Control
Over load current protection and setting by POT
Single Phasing/Unbalance/Short Circuit protection
AUTO / Manual RESET via selection switch
Fault feedback - RED LED & Mech relay NO/NC
Upto 15 Amp load current (Motor rating upto 3 HP)
Output : 24-480 VAC (47-63 Hz), 15Amp
PIV : 1200Vpk, I²T : 7200A²S for 9.6mS
UNI 905 3FR OLSPZDA 48 15 01 + A100 HEAT SINK + DIN RAIL
3 Phase Forward Reverse DC to AC Solid State Relay, Forward Reverse SSR, Forward Reverse Semiconductor Motor Starter with Overload / Single Phase Protection Current and Voltage Detection, 3 PH Forward Reverse SSR, Motor controller, DOL starter, SSR with inbuilt OLR, Overload relays, Motor Relays, Semiconductor Motor controller, SSR, SSRs and Heatsink
| 905 MODEL / HEATSINK | 25 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| E-75 | Upto 2 HP Motor |
| E-75 | 7 AmpX3=21 Amp |
UNI 905 3PH ZAA 48 25 28 + E-75 HEAT SINK + DIN RAIL
25 Amp 3 Phase AC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
Input : 80-280VAC, 5-20mA, Plug in Type
Input LED Indication : Green
3Phase Output : 24-480VAC (47-63 Hz), 25Amp
PIV : 800Vpk,I²T : 340A²S for 9.6mS
Body isolation : 4kV for 1min
I/P. to O/P. isolation : 6kV for 1min
Inbuilt surge voltage protection of 2700Vrms
Zero Cross Over SSR
IP 20 protection Flaps Cover
Inbuilt Snubber
UNI 905 3PH ZAA 48 25 28 + E-75 HEAT SINK + DIN RAIL
25 Amp 3 Phase AC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Short circuit protected SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
| 905 MODEL / HEATSINK | 05 AMP SSR LOAD CURRENT @ 40°C |
|---|---|
| E-75 | Upto 3 HP Motor |

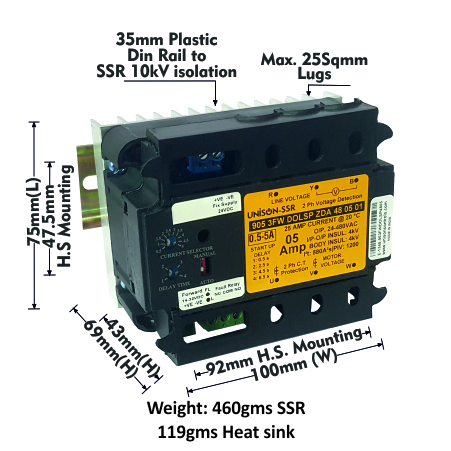

UNI 905 3FW DOLSPZDA 48 05 01 + E-75 HEAT SINK + DIN
3 Phase Forward DC to AC Solid State Relay, Forward SSR, Forward Semiconductor Motor Starter with Overload / Single Phase Protection Current and Voltage Detection, 3 PH Forward SSR, Motor controller, DOL starter, SSR with inbuilt OLR, Overload relays, Motor Relays, Semiconductor Motor controller, SSR, SSRs and Heatsink, One Direction Motor Control
100% Semiconductor motor 3 Phase Zero Cross SSR
Voltage and Current detection inside SSR
One Direction Motor Control
Over load current protection and setting by POT
Single Phasing/Unbalance/Short Circuit protection
AUTO / Manual RESET via selection switch
Fault feedback - RED LED & Mech relay NO/NC
Upto 5 Amp load current (Motor rating upto 3 HP)
Output : 24-480 VAC (47-63 Hz), 05Amp
PIV : 1200Vpk, I²T : 880A²S for 9.6mS
UNI 905 3FW DOLSPZDA 48 05 01 + E-75 HEAT SINK + DIN
3 Phase Forward DC to AC Solid State Relay, Forward SSR, Forward Semiconductor Motor Starter with Overload / Single Phase Protection Current and Voltage Detection, 3 PH Forward SSR, Motor controller, DOL starter, SSR with inbuilt OLR, Overload relays, Motor Relays, Semiconductor Motor controller, SSR, SSRs and Heatsink, One Direction Motor Control
