  • 25A
  • 40A
  • 50A
905 MODEL / HEATSINK
25 AMP SSR LOAD CURRENT @ 40°C
E-75 Upto 2 HP Motor
E-75 7 AmpX3=21 Amp

UNI 905 3PH ZDA 48 25 01 + E-75 HEAT SINK + DIN RAIL

25 Amp 3 Phase DC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Input : 4-32VDC, 15-20mA, Plug in Type

Input LED Indication : Green

3 Phase Output : 24-480VAC (47-63 Hz), 25 Amp

PIV : 800Vpk,I²T : 340A²S for 9.6mS

Body isolation : 4kV for 1min

I/P. to O/P. isolation : 6kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Zero Cross Over SSR

IP 20 protection Flaps Cover

Inbuilt Snubber

UNI 905 3PH ZDA 48 25 01 + E-75 HEAT SINK + DIN RAIL

25 Amp 3 Phase DC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
905 MODEL / HEATSINK
40 AMP SSR LOAD CURRENT @ 40°C
E-75 Upto 3 HP Motor
E-75 7 AmpX3=21 Amp

UNI 905 3PH ZDA 48 40 01 + E-75 HEAT SINK + DIN RAIL

40 Amp 3 Phase DC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Input : 4-32VDC, 15-20mA, Plug in Type

Input LED Indication : Green

3 Phase Output : 24-480VAC (47-63 Hz), 40 Amp

PIV : 800Vpk,I²T : 880A²S for 9.6mS

Body isolation : 4kV for 1min

I/P. to O/P. isolation : 6kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Zero Cross Over SSR

IP 20 protection Flaps Cover

Inbuilt Snubber

UNI 905 3PH ZDA 48 40 01 + E-75 HEAT SINK + DIN RAIL

40 Amp 3 Phase DC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
905 MODEL / HEATSINK
50 AMP SSR LOAD CURRENT @ 40°C
E-75 Upto 3 HP Motor
A-100 Upto 7.5 HP Motor
A-100 21Amp X 3=63Amp

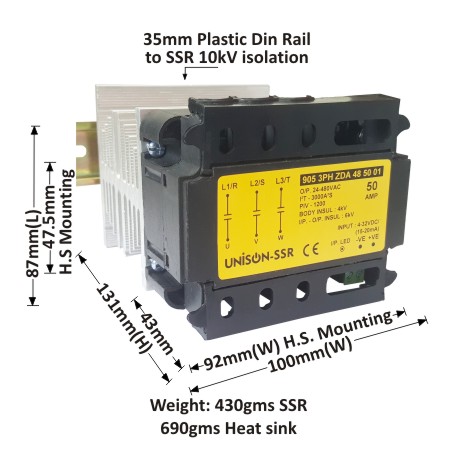

UNI 905 3PH ZDA 48 50 01 + A-100 HEAT SINK + DIN RAIL

50 Amp 3 Phase DC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

Input : 4-32VDC, 15-20mA, Plug in Type

Input LED Indication : Green

3PhaseOutput : 24-480VAC (47-63 Hz), 50Amp

PIV : 800Vpk,I²T : 3000A²S for 9.6mS

Body isolation : 4kV for 1min

I/P. to O/P. isolation : 6kV for 1min

Inbuilt surge voltage protection of 2700Vrms

Zero Cross Over SSR

IP 20 protection Flaps Cover

Inbuilt Snubber

UNI 905 3PH ZDA 48 50 01 + A-100 HEAT SINK + DIN RAIL

50 Amp 3 Phase DC to AC Solid State Relay, 3 Phase SSR, Zero cross over SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 3PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
