3 PH FORWARD DC TO AC OVER LOAD SSR

Home  MODEL 905 - 3PH  3 PH FORWARD DC TO AC OVER LOAD SSR
Back
    Current name
  • MODEL 901 - 45MM
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY (UL APPROVED)
    • ZERO CROSS OVER AC TO AC SOLID STATE RELAY (UL APPROVED)
    • RANDOM DC TO AC SOLID STATE RELAY (UL APPROVED)
    • ANALOG PHASE ANGLE CONTROL SSR (UL APPROVED)
    • PHASE ANGLE CONTROLLER BY POT
    • MOSFET DC TO DC SOLID STATE RELAY
    • IGBT DC TO DC SOLID STATE RELAY
  • MODEL 901 THYRISTOR CONTROLLER
    • SCR POWER CONTROLLER (UL APPROVED)
    • BURST FIRE CONTROL SSR (UL APPROVED)
  • MODEL 901 TEMPERATURE CONTROLLER
    • MODBUS TEMP CONTROL HEAT ONLY SSR
    • MODBUS TEMP CONTROL HEAT & COOL SSR
  • MODEL 803 - 23.6MM
    • ZERO CROSS OVER SLIM DC TO AC SSR (UL APPROVED)
    • ZERO CROSS OVER SLIM AC TO AC SOLID STATE RELAY
    • SLIM RANDOM DC TO AC SSR (UL APPROVED)
    • SLIM ANALOG PHASE ANGLE CONTROL SSR
    • SLIM MOSFET DC TO DC SOLID STATE RELAY
    • SLIM IGBT DC TO DC SOLID STATE RELAY
    • FAULT DETECTION DC TO AC SSR
  • MODEL 101 - 45MM
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
    • RANDOM DC TO AC SOLID STATE RELAY
    • MOSFET DC TO DC SOLID STATE RELAY
  • MODEL 102 - 2 CHANNEL - 22.5 MM X 2 NOS.
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
  • MODEL 905 - 3PH
    • 3 PHASE DC TO AC SSR
    • 3 PHASE AC TO AC SSR
    • 3 PHASE UNIVERSAL TO AC SSR
    • 3 PH FW/REV DC TO AC OVER LOAD SSR
    • 3 PH FORWARD DC TO AC OVER LOAD SSR
  • PCB MOUNTED RELAY
    • MODEL 703
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 704
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 802
      • SLIM DC TO AC SOLID STATE RELAY
      • SLIM MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 806
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 807
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
  • MODEL 801/808
    • MODEL 801
      • 3 PHASE DC TO AC SSR
    • MODEL 808
      • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
  • SSR INTERFACE CARD
    • MODEL 909
      • SHORT CIRCUIT PROTECT DC TO DC SSR CARD
    • MODEL 806
      • DC TO AC INTERFACE RELAY CARD
      • DC TO DC INTERFACE RELAY CARD
    • MODEL 703
      • DC TO AC INTERFACE RELAY CARD
      • DC TO DC INTERFACE RELAY CARD
    • MODEL 905
      • SCANNER CARD
    • MODEL 710
      • LINEAR CURRENT TRANSFORMER (C.T.)
  • HEAT SINK SUITABLE
    • MODEL 901/801
    • MODEL 101/102
    • MODEL 803
    • MODEL 905
    • MODEL 807
    • MODEL 808
  • 05A
  • 10A
  • 15A
905 MODEL / HEATSINK
05 AMP SSR LOAD CURRENT @ 40°C
E-75 Upto 3 HP Motor

UNI 905 3FW DOLSPZDA 48 05 01 + E-75 HEAT SINK + DIN

3 Phase Forward DC to AC Solid State Relay, Forward SSR, Forward Semiconductor Motor Starter with Overload / Single Phase Protection Current and Voltage Detection, 3 PH Forward SSR, Motor controller, DOL starter, SSR with inbuilt OLR, Overload relays, Motor Relays, Semiconductor Motor controller, SSR, SSRs and Heatsink, One Direction Motor Control

100% Semiconductor motor 3 Phase Zero Cross SSR

Voltage and Current detection inside SSR

One Direction Motor Control

Over load current protection and setting by POT

Single Phasing/Unbalance/Short Circuit protection

AUTO / Manual RESET via selection switch

Fault feedback - RED LED & Mech relay NO/NC

Upto 5 Amp load current (Motor rating upto 3 HP)

Output : 24-480 VAC (47-63 Hz), 05Amp

PIV : 1200Vpk, I²T : 880A²S for 9.6mS

UNI 905 3FW DOLSPZDA 48 05 01 + E-75 HEAT SINK + DIN

3 Phase Forward DC to AC Solid State Relay, Forward SSR, Forward Semiconductor Motor Starter with Overload / Single Phase Protection Current and Voltage Detection, 3 PH Forward SSR, Motor controller, DOL starter, SSR with inbuilt OLR, Overload relays, Motor Relays, Semiconductor Motor controller, SSR, SSRs and Heatsink, One Direction Motor Control

Product Sharing :
905 MODEL / HEATSINK

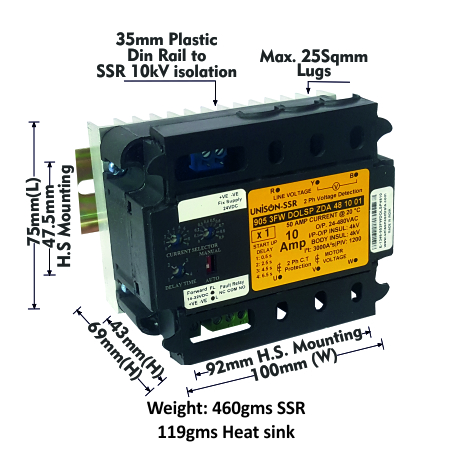

10 AMP SSR LOAD CURRENT @ 40°C
E-75 Upto 3 HP Motor
A-100 Upto 5 HP Motor

UNI 905 3FW DOLSPZDA 48 10 01 + E-75 HEAT SINK + DIN

3 Phase Forward DC to AC Solid State Relay, Forward SSR, Forward Semiconductor Motor Starter with Overload / Single Phase Protection Current and Voltage Detection, 3 PH Forward SSR, Motor controller, DOL starter, SSR with inbuilt OLR, Overload relays, Motor Relays, Semiconductor Motor controller, SSR, SSRs and Heatsink, One Direction Motor Control

100% Semiconductor motor 3 Phase Zero Cross SSR

Voltage and Current detection inside SSR

One Direction Motor Control

Over load current protection and setting by POT

Single Phasing/Unbalance/Short Circuit protection

AUTO / Manual RESET via selection switch

Fault feedback - RED LED & Mech relay NO/NC

Upto 10 Amp load current (Motor rating upto 3 HP)

Output : 24-480 VAC (47-63 Hz), 10Amp

PIV : 1200Vpk, I²T : 3000A²S for 9.6mS

UNI 905 3FW DOLSPZDA 48 10 01 + E-75 HEAT SINK + DIN

3 Phase Forward DC to AC Solid State Relay, Forward SSR, Forward Semiconductor Motor Starter with Overload / Single Phase Protection Current and Voltage Detection, 3 PH Forward SSR, Motor controller, DOL starter, SSR with inbuilt OLR, Overload relays, Motor Relays, Semiconductor Motor controller, SSR, SSRs and Heatsink, One Direction Motor Control

Product Sharing :
905 MODEL / HEATSINK

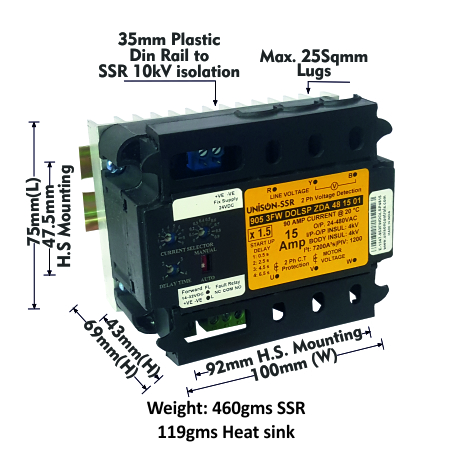

15 AMP SSR LOAD CURRENT @ 40°C
E-75 Upto 3 HP Motor
A-100 Upto 7.5 HP Motor

UNI 905 3FW DOLSPZDA 48 15 01 + E-75 HEAT SINK + DIN

3 Phase Forward DC to AC Solid State Relay, Forward SSR, Forward Semiconductor Motor Starter with Overload / Single Phase Protection Current and Voltage Detection, 3 PH Forward SSR, Motor controller, DOL starter, SSR with inbuilt OLR, Overload relays, Motor Relays, Semiconductor Motor controller, SSR, SSRs and Heatsink, One Direction Motor Control

100% Semiconductor motor 3 Phase Zero Cross SSR

Voltage and Current detection inside SSR

One Direction Motor Control

Over load current protection and setting by POT

Single Phasing/Unbalance/Short Circuit protection

AUTO / Manual RESET via selection switch

Fault feedback - RED LED & Mech relay NO/NC

Upto 15 Amp load current (Motor rating upto 3 HP)

Output : 24-480 VAC (47-63 Hz), 15Amp

PIV : 1200Vpk, I²T : 7200A²S for 9.6mS

UNI 905 3FW DOLSPZDA 48 15 01 + E-75 HEAT SINK + DIN

3 Phase Forward DC to AC Solid State Relay, Forward SSR, Forward Semiconductor Motor Starter with Overload / Single Phase Protection Current and Voltage Detection, 3 PH Forward SSR, Motor controller, DOL starter, SSR with inbuilt OLR, Overload relays, Motor Relays, Semiconductor Motor controller, SSR, SSRs and Heatsink, One Direction Motor Control

Product Sharing :
