  • G12

UNI HEAT SINK "G-12.5" + DIN

Heat sink, Heat Sinks, Aluminium Extruded Heatsink, Heatsink manufacturer in India, Aluminium Heat Sink

Suitable for Model 807-1Nos.

Current upto 8Amp @40°C

Thermal Resistance RθSA =6.8°C/W,

RθSA = 279.95 K/W, ΔT= 75°C

Surface Area : 491mm²X30mm = 6137.5mm³

35mm Plastic Din Rail to SSR 10kV Isolation

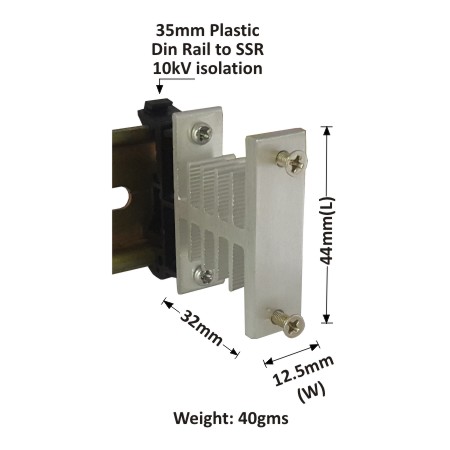

Heat sink size : 12.5mm(W) X 44mm(L) X 32mm(H)

Weight : @ 40gms
