  • G30

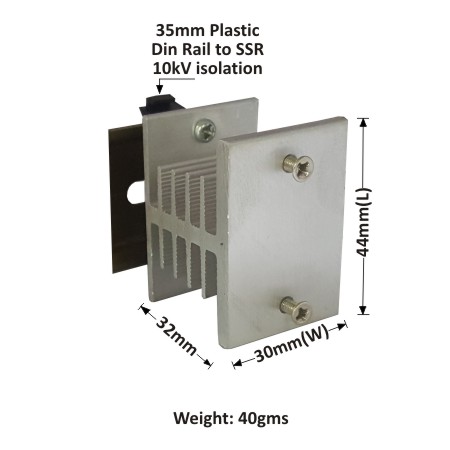

UNI HEAT SINK "G-30" + DIN

Heat sink, Heat Sinks, Aluminium Extruded Heatsink, Heatsink manufacturer in India, Aluminium Heat Sink

Suitable for Model 808-1Nos.

Current upto 15Amp @40°C

Thermal Resistance RθSA =3.59°C/W,

RθSA = 276.24 K/W, ΔT= 75°C

Surface Area : 491mm²X30mm = 14730mm³

35mm Plastic Din Rail to SSR 10kV Isolation

Heat sink size : 30mm(W) X 44mm(L) X 32mm(H)

Weight : @ 40gms

UNI HEAT SINK "G-30" + DIN

Heat sink, Heat Sinks, Aluminium Extruded Heatsink, Heatsink manufacturer in India, Aluminium Heat Sink

SPECIFICATION CAD DRAWING DATASHEET
