Suitable for Model 901-1 Nos. & Model 808-1 Nos.

Current upto 26Amp @40°C

Thermal Resistance RθSA = 2.5°C/W,

RθSA = 275.65 K/W, ΔT= 75°C

Surface Area : 491mm²X68mm = 33388 mm³

35mm Plastic Din Rail for 10kV Isolation

Heat sink size : 44mm(W) X 68mm(L) X 32mm(H)

Weight : @ 95gms

Suitable for Model 901-1 Nos. & Model 803-2 Nos.

Current upto 36Amp @40°C

Thermal Resistance RθSA = 1.17°C/W,

RθSA = 274.32 K/W, ΔT= 75°C

Surface Area : 2630mm²X48mm = 126240mm³

35mm Plastic Din Rail to SSR 10kV Isolation

Heat sink size : 48mm(W) X 87mm(L) X 80mm(H)

Weight : @ 310gms

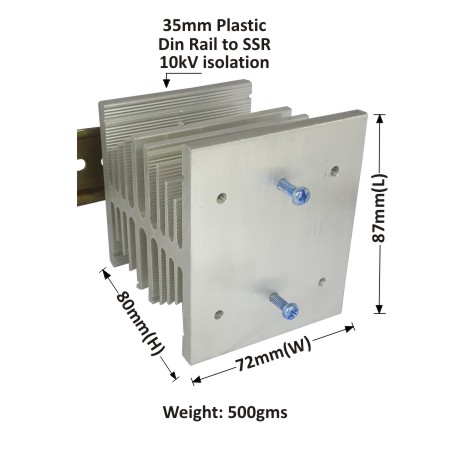

Suitable for Model 803-3Nos. & Model 901-1No.

Current upto 60Amp @40°C

Thermal Resistance RθSA =0.85°C/W,

RθSA = 274 K/W, ΔT= 75°C

Surface Area : 2630mm²X72mm = 189360mm³

35mm Plastic Din Rail to SSR 10kV Isolation

Heat sink size : 72mm(W) X 87mm(L) X 80mm(H)

Weight : @ 500gms

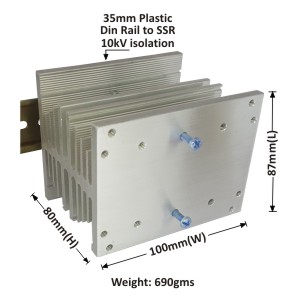

Suitable for Model 901-2 Nos. & Model 905-1 No.

Current upto 80Amp @40°C

Thermal Resistance RθSA = 0.65°C/W,

RθSA = 273.83 K/W, ΔT= 75°C

Surface Area : 2630mm²X100mm = 263000mm³

35mm Plastic Din Rail to SSR 10kV Isolation

Heat sink size : 100mm(W) X 87mm(L) X 80mm(H)

Weight : @ 690gms

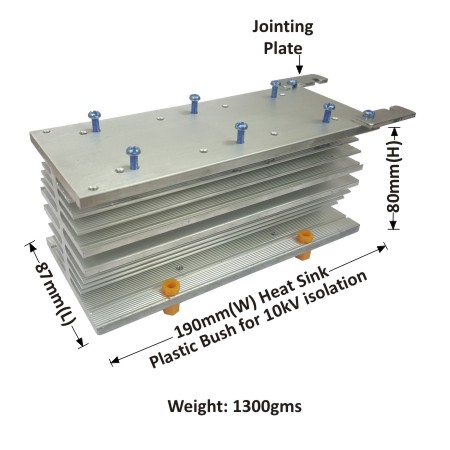

Suitable for Model 901-4 Nos. & 905-1 No.

Current upto 132Amp @40°C

Thermal Resistance RθSA = 0.33°C/W

RθSA = 273.48 K/W, ΔT= 75°C

Surface Area : 2630mm²X190mm = 499700mm³

35mm Plastic Din Rail to SSR 10kV Isolation

Heat sink size : 190mm(W) X 87mm(L) X 80mm(H)

Weight : @ 1300gms

Suitable for Model 901-4 Nos. & 905-1 No.

Current upto 156Amp @40°C with 230Vac Fan

Thermal Resistance RθSA = 0.22°C/W,

RθSA = 273.37 K/W, ΔT= 75°C

Surface Area : 2630mm²X190mm = 499700mm³

35mm Plastic Din Rail to SSR 10kV Isolation

Heat sink size : 190mm(W) X 87mm(L) X 80mm(H)

Weight : @ 1530gms

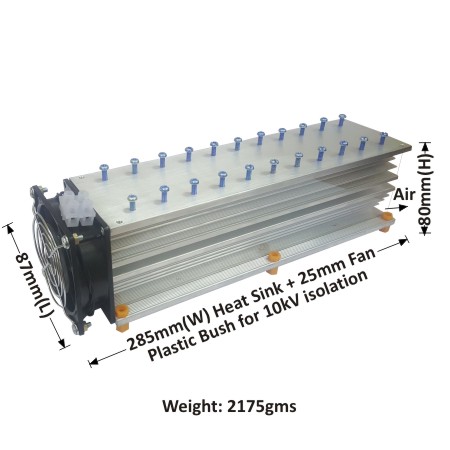

Suitable for Model 901-6 Nos. & 905-2 No

Current upto 240Amp @40°C with 230Vac Fan

Thermal Resistance RθSA = 0.04°C/W,

RθSA = 273.19 K/W, ΔT= 75°C

Surface Area : 2630mm²X285mm = 749550mm³

35mm Plastic Din Rail to SSR 10kV Isolation

Heat sink size : 285mm(W) X 87mm(L) X 80mm(H)

Weight : @ 2175gms
