  • E75

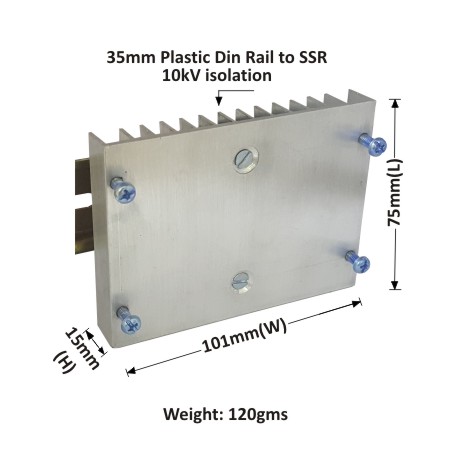

UNI HEAT SINK "E-75" + DIN RAIL

Heat sink, Heat Sinks, Aluminium Extruded Heatsink, Heatsink manufacturer in India, Aluminium Heat Sink

Suitable for Model 905-1Nos.

Current upto 21Amp @40°C

Thermal Resistance RθSA =3°C/W,

RθSA = 278.15 K/W, ΔT= 75°C

Surface Area : 267mm²X75mm = 20025mm³

35mm Plastic Din Rail to SSR 10kV Isolation

Heat sink size : 101mm(W) X 75mm(L) X 15mm(H)

Weight : @ 120gms

UNI HEAT SINK "E-75" + DIN RAIL

Heat sink, Heat Sinks, Aluminium Extruded Heatsink, Heatsink manufacturer in India, Aluminium Heat Sink

SPECIFICATION CAD DRAWING DATASHEET
