  • 05A

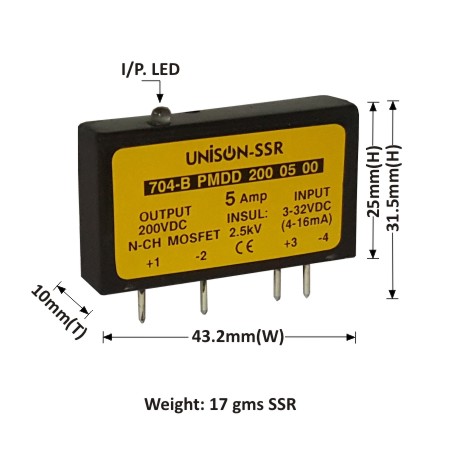

UNI 704-B PMDD 200 05 00

5 Amp DC to DC PCB mounted solid state relay, PCB Mounted SSR, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Opto isolation SSR, Miniature Solid State Relay, Terminal Relays, Input Output Relays, Interface Relay, Solid State Relay manufacturer in India, Solid State Relays, SSR

DC Output Switching SSR - POWER MOSFET

Input : 3-32VDC, 4-16mA

Input Green LED indication

Output : 5-200VDC - 5 Amp

I/P. to O/P. insulation : 2.5kV for 1min

Turn ON time : 2.5 mS

Turn OFF time : 40 μS

ON State Voltage Drop : ≤0.3Vdc

No Leakage Current at output side

UNI 704-B PMDD 200 05 00

5 Amp DC to DC PCB mounted solid state relay, PCB Mounted SSR, DC switching, DC control, Power MOSFET SSR, DC output Solid State Relay, Opto isolation SSR, Miniature Solid State Relay, Terminal Relays, Input Output Relays, Interface Relay, Solid State Relay manufacturer in India, Solid State Relays, SSR

SPECIFICATION CAD DRAWING DATASHEET
