DC TO DC INTERFACE RELAY CARD

Home  SSR INTERFACE CARD  MODEL 703  DC TO DC INTERFACE RELAY CARD
Back
    Current name
  • MODEL 901 - 45MM
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY (UL APPROVED)
    • ZERO CROSS OVER AC TO AC SOLID STATE RELAY (UL APPROVED)
    • RANDOM DC TO AC SOLID STATE RELAY (UL APPROVED)
    • ANALOG PHASE ANGLE CONTROL SSR (UL APPROVED)
    • PHASE ANGLE CONTROLLER BY POT
    • MOSFET DC TO DC SOLID STATE RELAY
    • IGBT DC TO DC SOLID STATE RELAY
  • MODEL 901 THYRISTOR CONTROLLER
    • SCR POWER CONTROLLER (UL APPROVED)
    • BURST FIRE CONTROL SSR (UL APPROVED)
  • MODEL 901 TEMPERATURE CONTROLLER
    • MODBUS TEMP CONTROL HEAT ONLY SSR
    • MODBUS TEMP CONTROL HEAT & COOL SSR
  • MODEL 803 - 23.6MM
    • ZERO CROSS OVER SLIM DC TO AC SSR (UL APPROVED)
    • ZERO CROSS OVER SLIM AC TO AC SOLID STATE RELAY
    • SLIM RANDOM DC TO AC SSR (UL APPROVED)
    • SLIM ANALOG PHASE ANGLE CONTROL SSR
    • SLIM MOSFET DC TO DC SOLID STATE RELAY
    • SLIM IGBT DC TO DC SOLID STATE RELAY
    • FAULT DETECTION DC TO AC SSR
  • MODEL 101 - 45MM
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
    • RANDOM DC TO AC SOLID STATE RELAY
    • MOSFET DC TO DC SOLID STATE RELAY
  • MODEL 102 - 2 CHANNEL - 22.5 MM X 2 NOS.
    • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
  • MODEL 905 - 3PH
    • 3 PHASE DC TO AC SSR
    • 3 PHASE AC TO AC SSR
    • 3 PHASE UNIVERSAL TO AC SSR
    • 3 PH FW/REV DC TO AC OVER LOAD SSR
    • 3 PH FORWARD DC TO AC OVER LOAD SSR
  • PCB MOUNTED RELAY
    • MODEL 703
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 704
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 802
      • SLIM DC TO AC SOLID STATE RELAY
      • SLIM MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 806
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
    • MODEL 807
      • DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
  • MODEL 801/808
    • MODEL 801
      • 3 PHASE DC TO AC SSR
    • MODEL 808
      • ZERO CROSS OVER DC TO AC SOLID STATE RELAY
      • MOSFET DC TO DC SOLID STATE RELAY
  • SSR INTERFACE CARD
    • MODEL 909
      • SHORT CIRCUIT PROTECT DC TO DC SSR CARD
    • MODEL 806
      • DC TO AC INTERFACE RELAY CARD
      • DC TO DC INTERFACE RELAY CARD
    • MODEL 703
      • DC TO AC INTERFACE RELAY CARD
      • DC TO DC INTERFACE RELAY CARD
    • MODEL 905
      • SCANNER CARD
    • MODEL 710
      • LINEAR CURRENT TRANSFORMER (C.T.)
  • HEAT SINK SUITABLE
    • MODEL 901/801
    • MODEL 101/102
    • MODEL 803
    • MODEL 905
    • MODEL 807
    • MODEL 808
  • 08CH

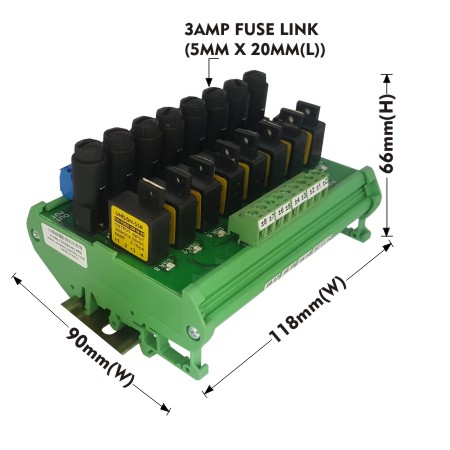

UNI 703 PMDD 200 05 00 - 08CH CARD

5 Amp DC to DC SSR Card, Interface Relay Card with Fuse, DC switching, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Relay Card Module, 2 Channel Relay Module, 4 Channel Relay Module and 8 Channel Relay Module

DC Output Switching SSR - POWER MOSFET

Input : 4-32VDC, 5-15mA

Output : 5-200VDC, 5 Amp (08 CH)

3A Replaceable Fuse failure / RED LED indication

I/P. to O/P. insulation : 2.5kV for 1min

Turn ON time : 2.5 mS / Turn OFF time : 40 μS

ON State Voltage Drop : ≤0.3Vdc

No Leakage Current at output side

Plug in type input and output terminals

UNI 703 PMDD 200 05 00 - 08CH CARD

5 Amp DC to DC SSR Card, Interface Relay Card with Fuse, DC switching, DC switching, DC control, Power MOSFET SSR, Solenoid Valve Switching SSR, DC motor Switching SSR, Relay Card Module, 2 Channel Relay Module, 4 Channel Relay Module and 8 Channel Relay Module

SPECIFICATION
