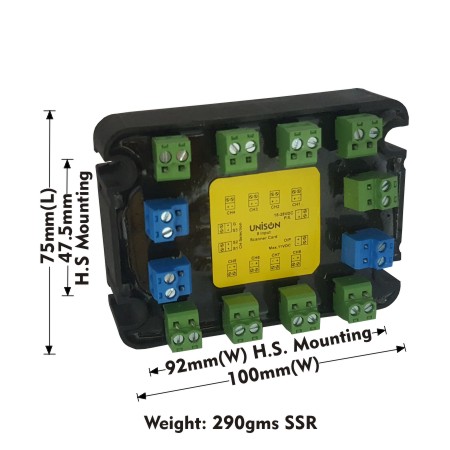

UNI SCANNER CARD 1 - 8CH

8 Channel Multiplexer, 8 Channel Scanner Card, 16 Channel Multiplexer, 16 Channel Scanner Card, Analog Multiplexer

Multiplexer 8 channel for current measurement

Ext Power supply: 18 to 28VDC / 300mA Regulated

Input: 1 to 8 Channel Analog (0-10 VDC) Max 20 mA

Output: One analog output 0-10 VDC to PLC

3 bit binary selection for channel

Digital input (3 Bit Binary) : 3-32 VDC, 2-20 mA

000 for CH1, 001 for CH2, .... and 111 for CH8

Scanning Speed: 2000 nS Per Channel

Common Mode Rejection : 75 mV

Plug in type input and output terminals

UNI SCANNER CARD 1 - 8CH

8 Channel Multiplexer, 8 Channel Scanner Card, 16 Channel Multiplexer, 16 Channel Scanner Card, Analog Multiplexer

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :

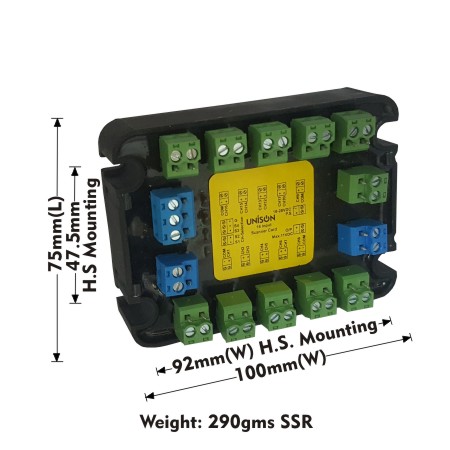

UNI SCANNER CARD 1 - 16CH

8 Channel Multiplexer, 8 Channel Scanner Card, 16 Channel Multiplexer, 16 Channel Scanner Card, Analog Multiplexer

Multiplexer 16 channel for current measurement

Ext Power supply: 18 to 28VDC / 300mA Regulated

Input: 1 to 16 Channel Analog (0-10 VDC) Max 20 mA

Output: One analog output 0-10 VDC to PLC

4 bit binary selection for channel

Digital input (4 Bit Binary) : 3-32 VDC, 2-20 mA

0000 for CH1, 0001 for CH2, .... and 1111 for CH16

Scanning Speed: 2000 nS Per Channel

Common Mode Rejection : 75 mV

Plug in type input and output terminals

UNI SCANNER CARD 1 - 16CH

8 Channel Multiplexer, 8 Channel Scanner Card, 16 Channel Multiplexer, 16 Channel Scanner Card, Analog Multiplexer

SPECIFICATION CAD DRAWING DATASHEET
Product Sharing :
